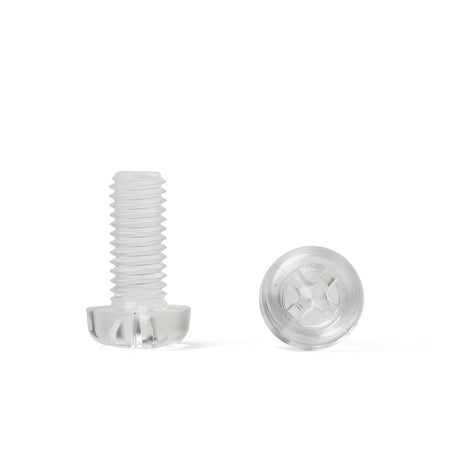

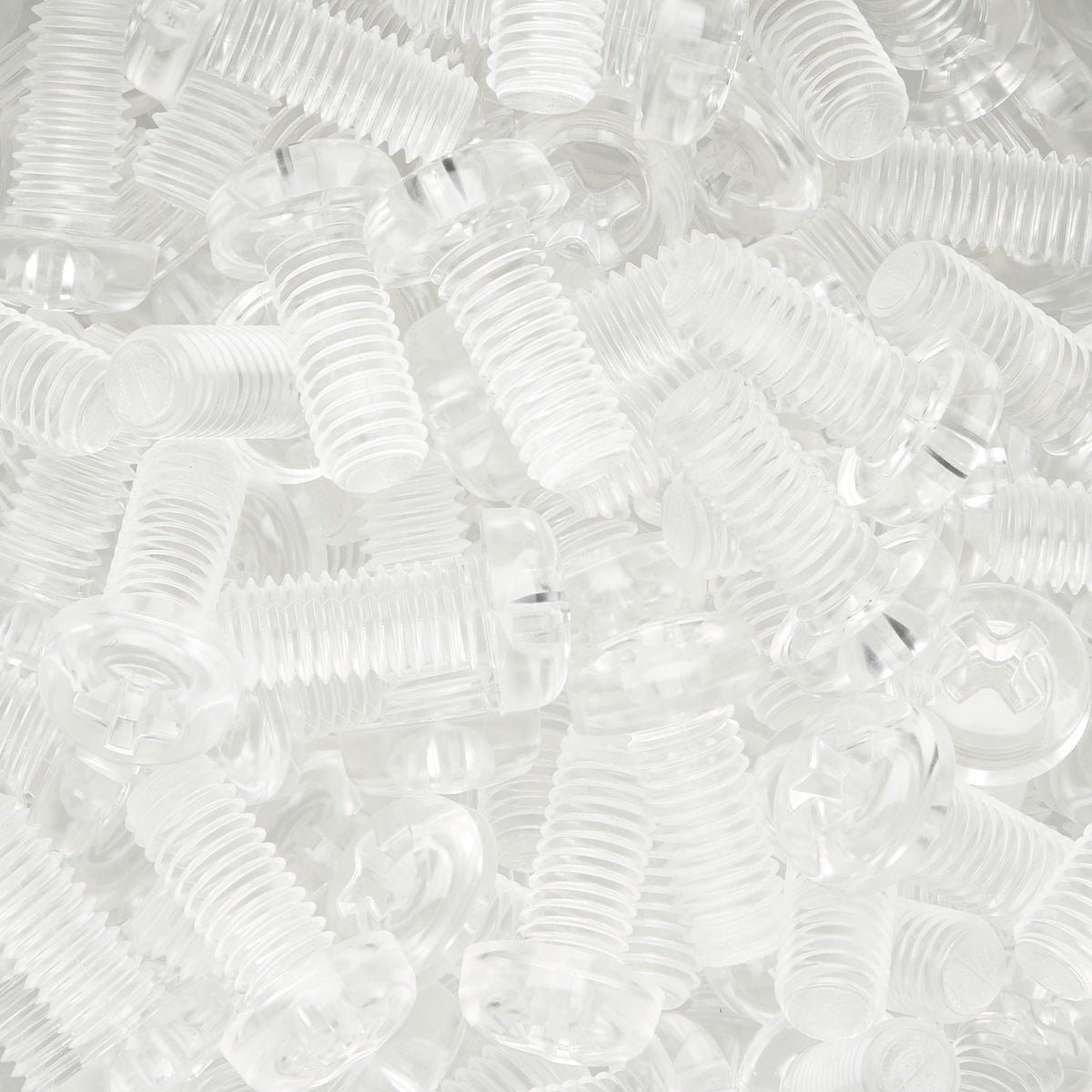

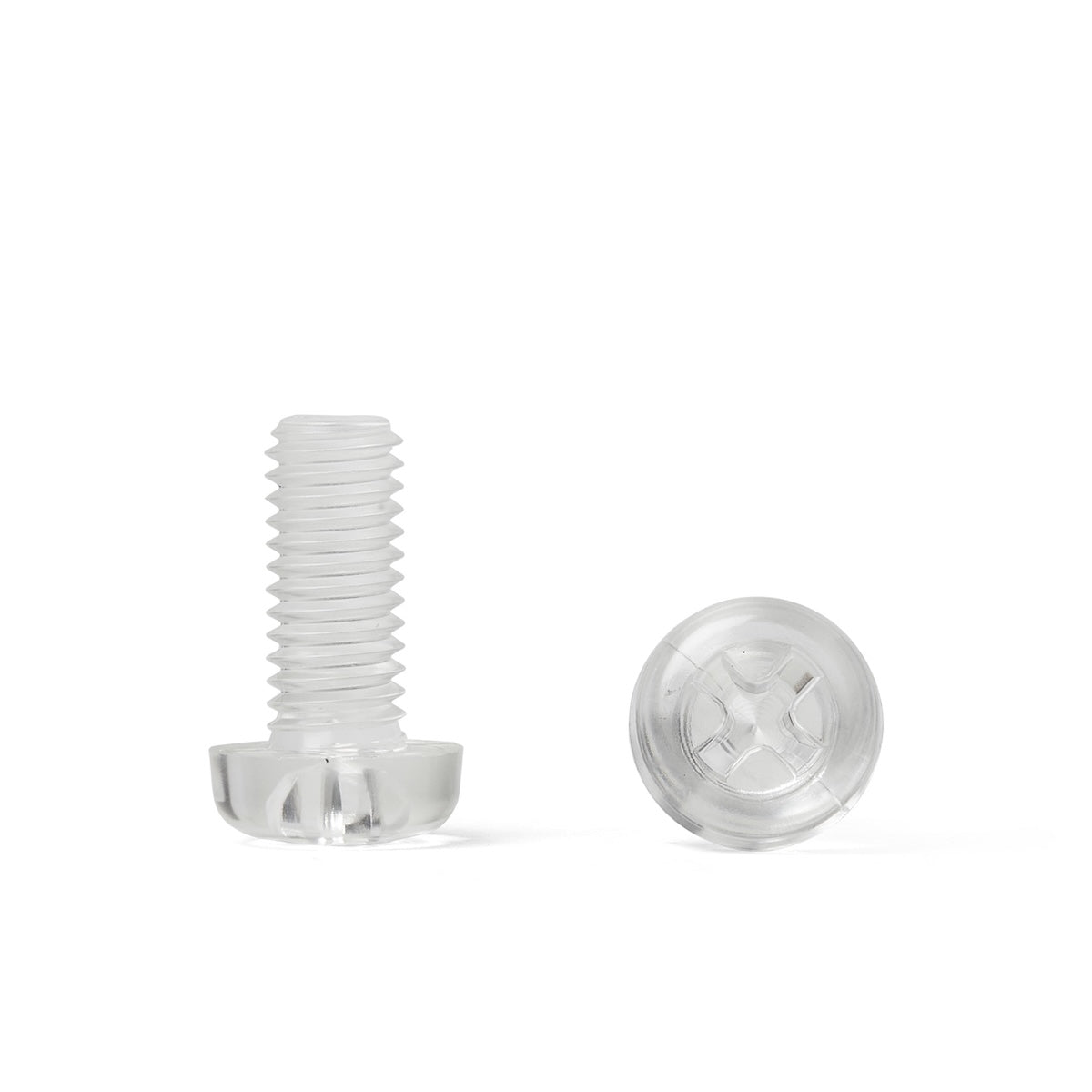

Viti a testa bombata in policarbonato - Phillips con intaglio a croce - DIN 7985

Manufactured to order.
SKU: PCPN173
Prezzo normale £0.07 - £0.10 GBP / each
Prezzo normale Vendita £0.16 GBP Prezzo di vendita £0.07 - £0.10 GBP

Sconti per quantità disponibili:

1 Pezzo £0.10
500 Pezzi £0.10
1000 Pezzi £0.09
2500 Pezzi £0.08
5000 Pezzi £0.08
10000 Pezzi £0.07
20000 Pezzi £0.07
30000+ Pezzi Contattaci
Mostra altro Mostra meno
Want it by XYZ?
Want it by XYZ?

Avete bisogno di assistenza?
Il nostro team è sempre a vostra disposizione!
Live chat: clicca sul bottone in basso a sinistra per parlare subito con noi.
Email: sales@highperformancepolymer.com
Telefono: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PC

Measurement System: Metric

Drive Type: Cross Recessed/Phillips

Colour: Black/Transparent/Natural

Temperatura d'uso continuo: 115°C/239°F

Infiammabilità: UL94 V-2

Viti a testa bombata in policarbonato - Phillips con intaglio a croce - DIN 7985 conform to the following Standards/Norms:

ISO 7045

DIN 7985

CSN 021147

PN 82202

UNI 7687

Le viti a testa bombata in policarbonato (PC) sono un ottimo elemento di fissaggio per applicazioni generiche.

Le nostre viti in PC sono trasparenti, il che le rende perfette per l'uso in applicazioni che richiedono un'estetica accattivante.

Le viti a testa bombata HPP sono prodotte con tecniche di stampaggio a iniezione. Gli stampi sono stati sviluppati nel tempo per garantire la qualità delle filettature e per ridurre al minimo i residui di cancello (>5%) derivanti dal processo di produzione.

Le nostre viti PC sono comunemente utilizzate in applicazioni generiche grazie ai bassi costi unitari, all'elevata resistenza agli urti e alle proprietà non corrosive.

Il certificato di conformità è disponibile su richiesta.

Di seguito è riportato un link alla nostra scheda tecnica.

Cosa sono le viti a testa bombata in policarbonato?

Le viti a testa bombata in policarbonato sono viti con testa tonda e piatta e gambo cilindrico. Sono realizzate in policarbonato, un tipo di plastica noto per la sua elevata resistenza e durata. Il policarbonato è un materiale molto diffuso per gli elementi di fissaggio e altri componenti perché è resistente agli urti, all'usura e ad altre forme di danneggiamento.

Le viti a testa cilindrica sono utilizzate per fissare insieme due o più parti e vengono serrate con un cacciavite o un trapano. Sono comunemente utilizzate in una varietà di applicazioni, tra cui l'edilizia, la produzione e l'industria automobilistica.

Le viti a testa cilindrica in policarbonato sono una buona scelta per le applicazioni in cui la resistenza e la durata sono fattori importanti. Sono inoltre resistenti alla corrosione, il che le rende adatte all'uso in ambienti esterni o ad alta umidità. Come altri tipi di viti, sono disponibili in una gamma di dimensioni e tipi di filettatura per soddisfare le diverse esigenze.

The PC data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Viti a testa bombata in policarbonato - Phillips con intaglio a croce - DIN 7985

Product Drawing

Pan Head Screw Dimension Table (ISO7045/DIN7985)
M Size Pitch (mm) Head Diameter (mm) Head Height (mm)
M1.7 0.35 2.5 0.5
M2 0.4 3.5 1.3
M2.5 0.45 4.5 1.7
M2.6 0.45 4.5 1.7
M3 0.5 5.5 2.0
M4 0.7 7.0 2.6
M5 0.8 9.0 3.3
M6 1.0 10.0 3.9
M8 1.25 14.0 5.2

Dimension Table

Dimensions for Viti a testa bombata in policarbonato - Phillips con intaglio a croce - DIN 7985 in all available sizes are shown according to the product drawing above.

Key Policarbonato (PC) Properties

Policarbonato (PC) Datasheet

Follow the link below to view our PC data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PC Key Properties

  • Exceptional impact resistance - Ideal for general applications.

    Ultra low cost - In comparison with other engineered polymer materials.

    Electrical insulation properties - Great for fastening electrical components.

    Good weight to strength ratio - Specific gravity (1.20).

  • - Operation temperature up to 115°C

    - Low weight Flame resistance (UL94 V-2)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Shock resistance
