Rondelle piatte in polipropilene - DIN 125 A

490 In Stock
SKU: PPWAM4
Prezzo normale £0.11 - £0.17 GBP / each
Prezzo normale Vendita £0.29 GBP Prezzo di vendita £0.11 - £0.17 GBP

Sconti per quantità disponibili:

1 Pezzo £0.17
500 Pezzi £0.16
1000 Pezzi £0.15
2500 Pezzi £0.14
5000 Pezzi £0.13
10000 Pezzi £0.12
20000 Pezzi £0.11
30000+ Pezzi Contattaci
Mostra altro Mostra meno
Want it by XYZ?
Want it by XYZ?

Avete bisogno di assistenza?
Il nostro team è sempre a vostra disposizione!
Live chat: clicca sul bottone in basso a sinistra per parlare subito con noi.
Email: sales@highperformancepolymer.com
Telefono: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PP

Measurement System: Metric

Colour: White

Temperatura d’uso continuo: 65 °C / 149 °F

Infiammabilità: UL94-HB

Rondelle piatte in polipropilene - DIN 125 A conform to the following Standards/Norms:

ISO 7089

DIN 125 A

CSN 021702

PN 82006

UNI 6592

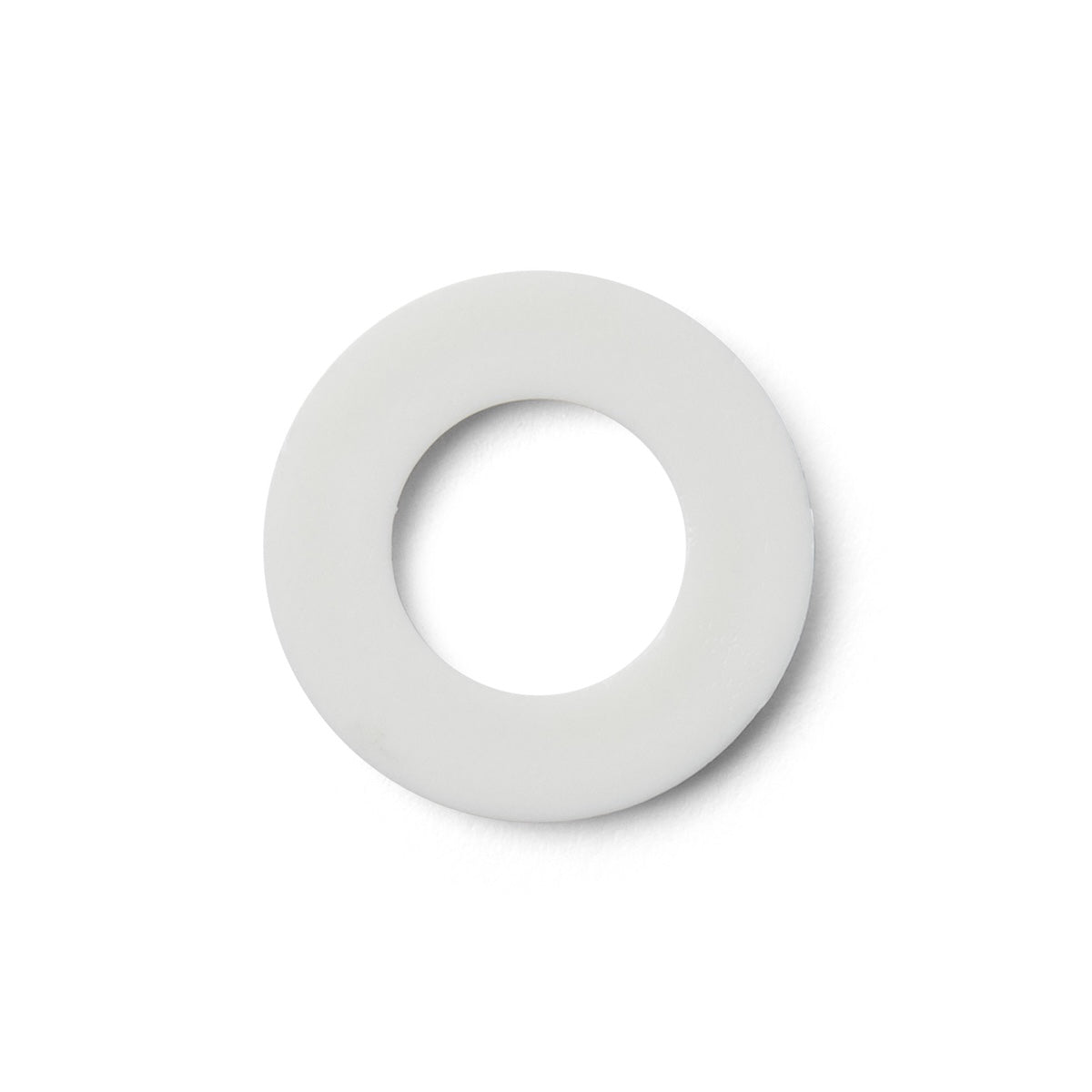

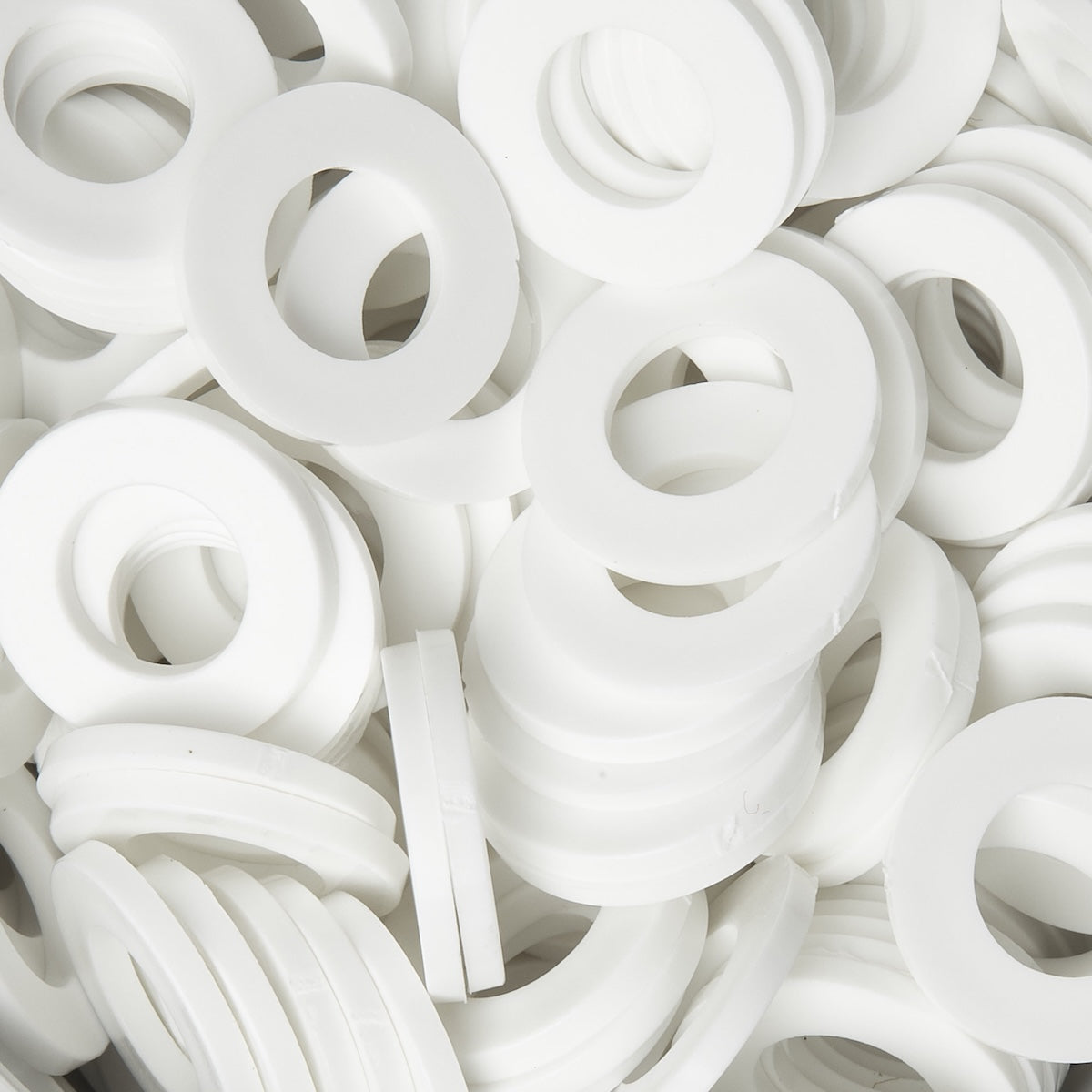

Le rondelle piatte in polipropilene (PP) sono un'ottima rondella polimerica di uso generale e sono comunemente utilizzate in un'ampia gamma di applicazioni. Il PP è uno dei materiali più leggeri che forniamo, con un peso specifico di 0,9. Questa caratteristica, unita all'eccellente resistenza chimica e all'idrolisi e all'isolamento elettrico, rende il PP un ottimo elemento di fissaggio per le applicazioni di uso generale.

Le rondelle piatte in polipropilene (PP) sono conformi alle specifiche DIN 125 e possono essere utilizzate in combinazione con una serie di dispositivi di fissaggio di materiali diversi a seconda dell'applicazione. Disponibili in misure metriche standard (M4- M12).

The PP data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Rondelle piatte in polipropilene - DIN 125 A

Product Drawing

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M1.6 1.7 3.7 0.25
M2 2.1 4.0 0.5
M2.6 2.7 6.0 0.5
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M16 17.0 30.0 3.0

Dimension Table

Dimensions for Rondelle piatte in polipropilene - DIN 125 A in all available sizes are shown according to the product drawing above.

Key Polipropilene (PP) Properties

RENY Flat Washers - High Performance Polymer-Plastic Fastener Components

Polipropilene (PP) Datasheet

Follow the link below to view our PP data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PP Key Properties

  • Eccellente resistenza chimica - Il Polipropilene (PP) ha un'elevata compatibilità chimica. Basso costo - Perfetto per applicazioni generali di fissaggio.

  • - Peso ridotto (Peso specifico 0,9). - Resistenza alla fiamma. - Resistenza all'abrasione. - Resistenza all'idrolisi
