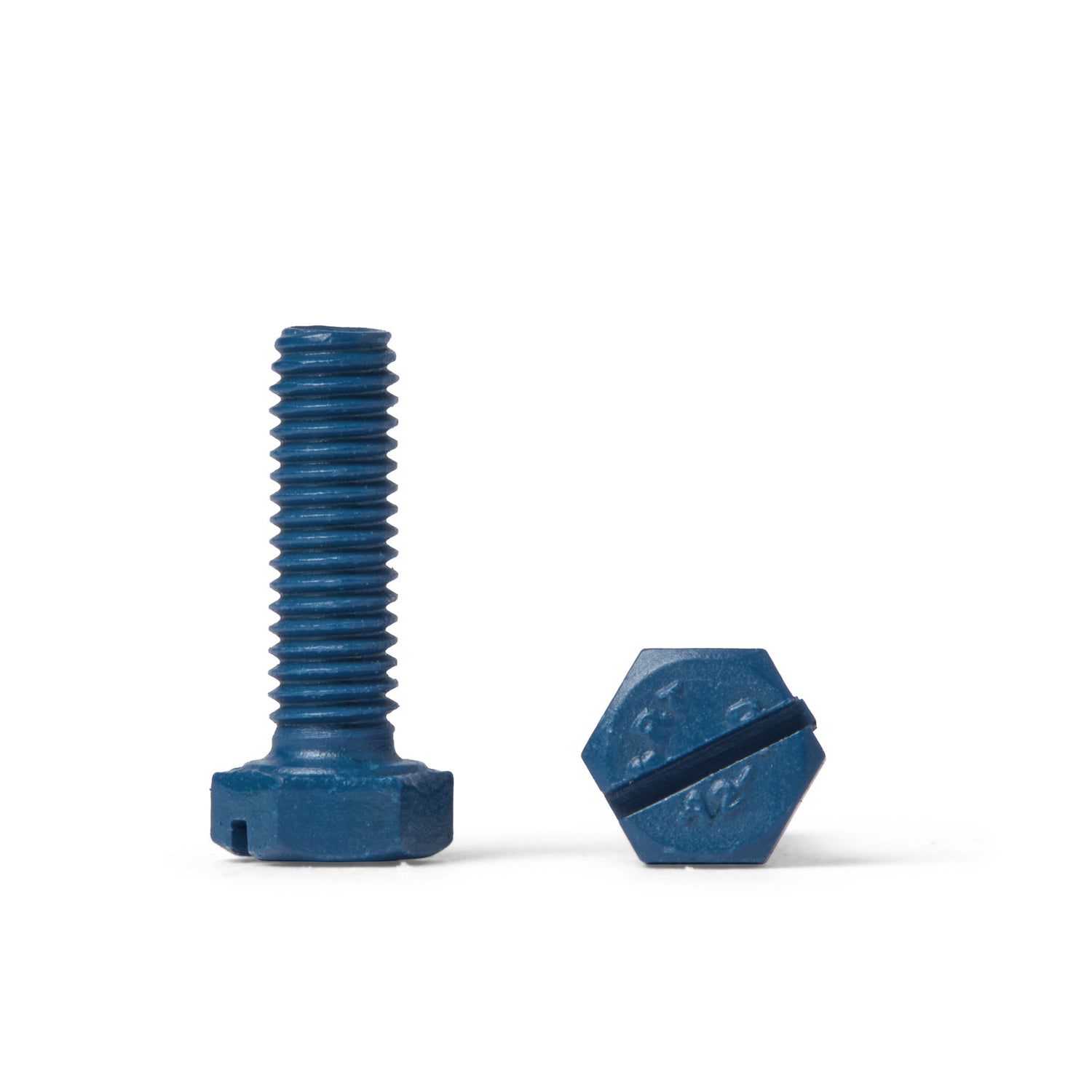

Bullone a testa esagonale con intaglio in acciaio inox rivestito in PTFE

Available in 21 days if you order today.
SKU: PFECSH510
Prezzo normale £5.00 GBP / each

Instant Quote Guarantee:
Inviate una richiesta di preventivo online cliccando sul pulsante qui sotto e vi sarà recapitata nella vostra casella di posta entro 5 minuti.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Size Head Height (mm) Across Flats (mm)
M5 3.5 8
M6 4 10
M8 5.3 13
M10 6.4 15
M12 7.5 16
M14 8.7 18
M16 10 21
M20 12.5 30

Dimension Table

Dimensions for Bullone a testa esagonale con intaglio in acciaio inox rivestito in PTFE in all available sizes are shown according to the product drawing above.

PTFE Coated A2 Stainless Steel Datasheet

Follow the link below to view our PTFE Coated data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PTFE Coated Key Properties

  • Corrosion Resistance: Provides excellent protection against rust, oxidation, and environmental degradation, making them suitable for use in harsh or corrosive environments.

    Chemical Inertness: Resists a wide range of chemicals, including acids, bases, solvents, and corrosive substances, without degrading or reacting.

    Low Friction: Offers a low coefficient of friction, which reduces friction between surfaces, minimizes wear, and enhances the longevity of both the fastener and the mating parts.

    Temperature Stability: Maintains its properties across a broad temperature range, from -100°C to +260°C, allowing it to perform well in extreme temperature conditions.

  • Non-Stick Properties: Prevents substances from adhering to the surface, making it easy to clean and maintain, and reducing the risk of contamination in sensitive applications.

    Electrical Insulation: Acts as a good electrical insulator, providing resistance to electrical conductivity and enhancing safety in electrical and electronic applications.

    Biocompatibility: Generally biocompatible and inert to biological tissues, making it suitable for use in medical and pharmaceutical applications where contact with biological systems is required.

    Durability: Enhances the mechanical strength and durability of the fastener, providing long-lasting performance even under challenging conditions.

    Smooth Surface Finish: Provides a smooth, even coating that improves the aesthetic appearance and performance of the fastener.

  • Reduced Torque Requirements: The low friction surface reduces the torque needed for installation and removal, facilitating easier handling and assembly.

    Weather Resistance: Withstands exposure to UV radiation, moisture, and other environmental factors without degrading, making it ideal for outdoor and marine applications.

    Chemical Resistance: Enhances resistance to a broad spectrum of aggressive chemicals beyond what the base material alone can handle.

    Enhanced Performance in Sliding and Rotating Applications: Ideal for applications involving sliding or rotating parts due to its low friction and non-stick characteristics.
