HPP PVDF®

Viti a testa svasata piana in PVDF Kynar - DIN 965

289 In Stock

SKU: PVFCK306

£0.65 - £1.00 GBP / each

Vendita ~~£3.53 GBP~~ £0.65 - £1.00 GBP

Sconti per quantità disponibili:

1 Pezzo £1.00

20 Pezzi £0.95

50 Pezzi £0.90

100 Pezzi £0.80

250 Pezzi £0.75

500 Pezzi £0.70

1000 Pezzi £0.65

2000+ Pezzi Contattaci

Mostra altro Mostra meno

Want it by XYZ?
Want it by XYZ?

Avete bisogno di assistenza?
Il nostro team è sempre a vostra disposizione!
Live chat: clicca sul bottone in basso a sinistra per parlare subito con noi.
Email: sales@highperformancepolymer.com
Telefono: +44(0)1865 684080

Viti a testa svasata piana in PVDF Kynar - DIN 965

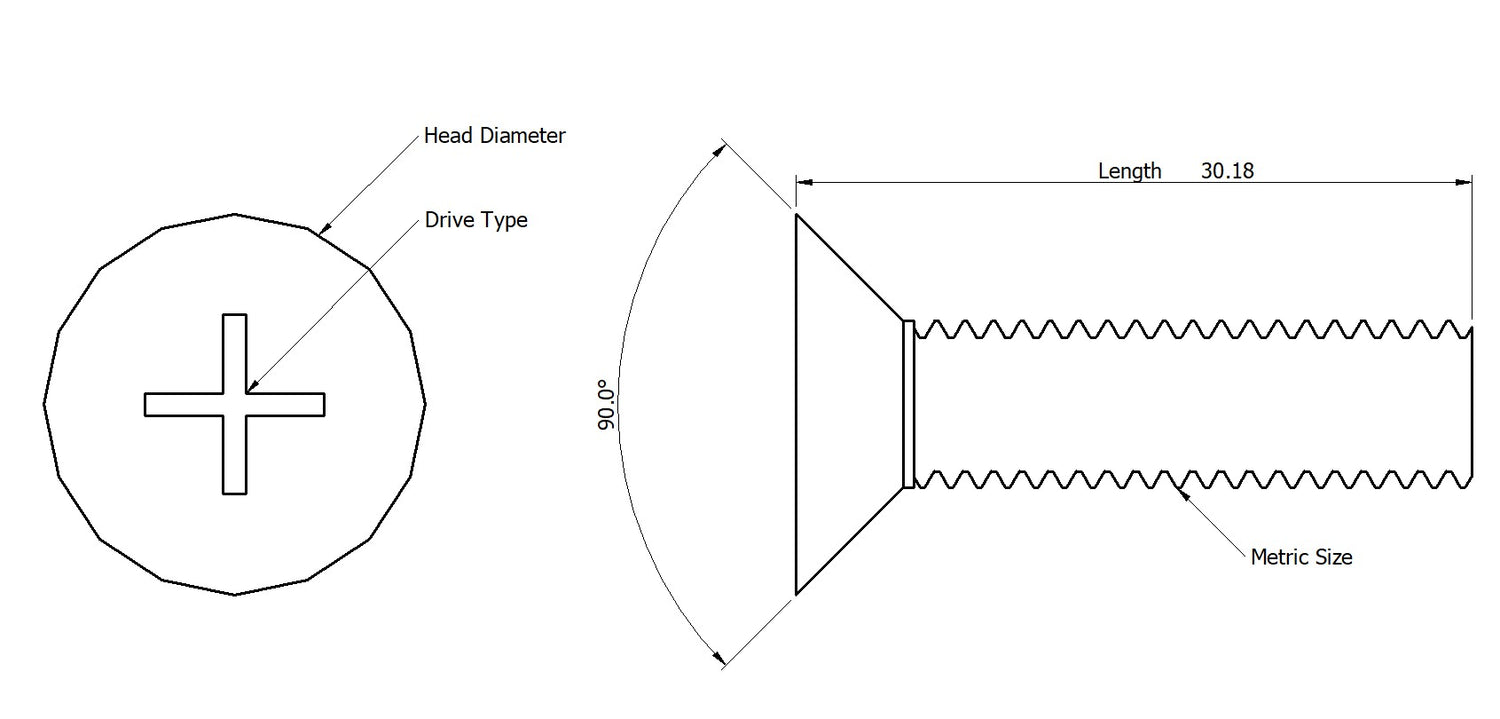

Product Drawing

Countersunk/Flathead Screw Dimension Table (ISO 7046/DIN 965)
M Size	Pitch (mm)	Head Diameter (mm)
M2	0.4	4.0
M2.5	0.45	5.0
M2.6	0.45	5.2
M3	0.5	6.0
M4	0.7	8.0
M5	0.8	10.0
M6	1.0	12.0
M8	1.25	16.0

Dimension Table

Dimensions for Viti a testa svasata piana in PVDF Kynar - DIN 965 in all available sizes are shown according to the product drawing above.

Key Polivinilidene Fluoruro (PVDF) Properties

Polivinilidene Fluoruro (PVDF) Datasheet

Follow the link below to view our PVDF data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PVDF Key Properties

Eccezionale resistenza chimica – il PVDF non è influenzato dalla maggior parte dei prodotti chimici, per ulteriori informazioni consultare la nostra scheda tecnica qui sotto. Basso assorbimento d’acqua – 0,030% a 23°C – Ottimo per uso esterno. Resistenza alla temperatura – uso continuo fino a 150°C. Resistenza alla fiamma – UL94 – V0.
- Peso ultraleggero. - Resistenza all’abrasione. - Resistenza all’idrolisi. - Eccezionali proprietà isolanti.
- Non magnetico. - Bassa conducibilità termica. - Non corrosivo. - Alta purezza.
