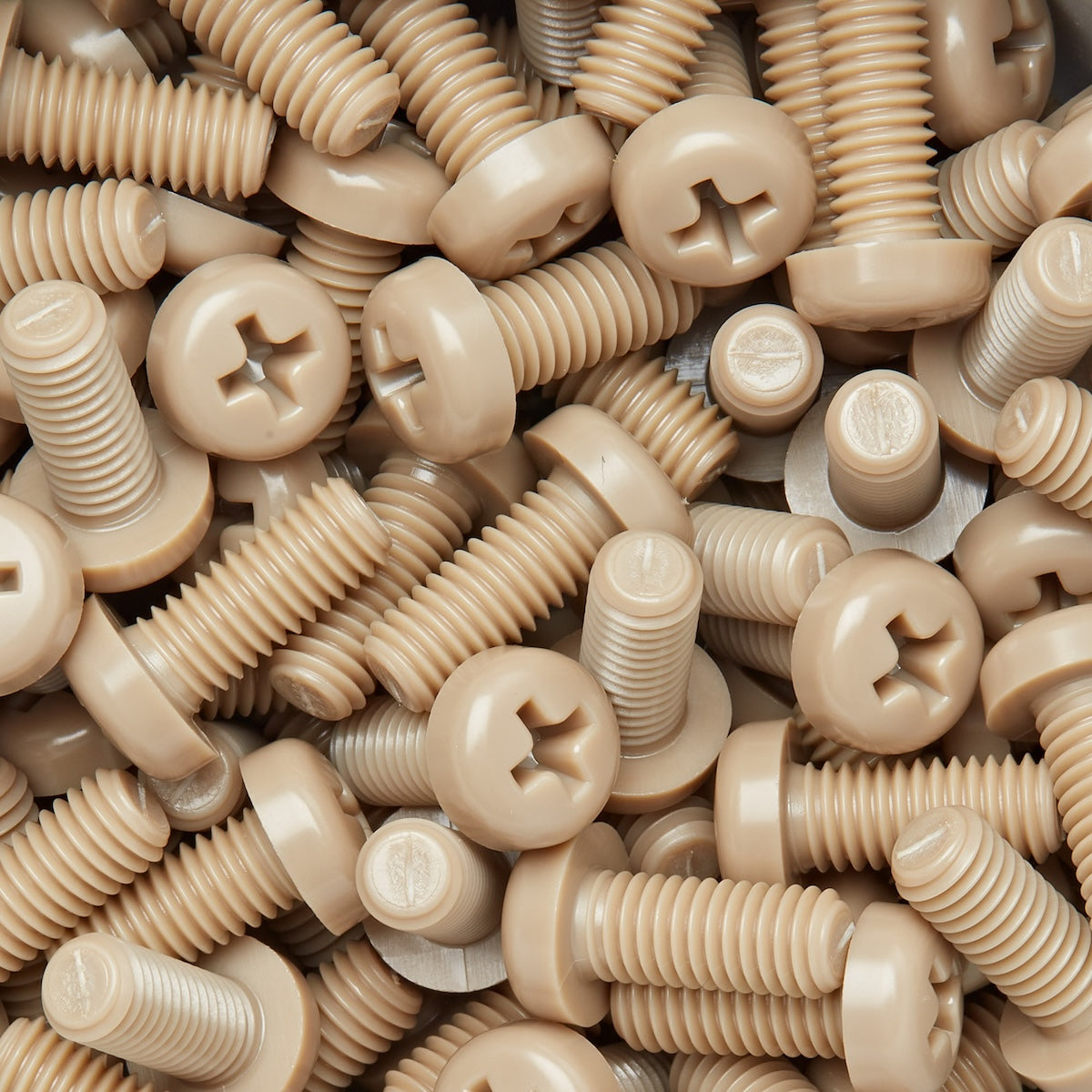

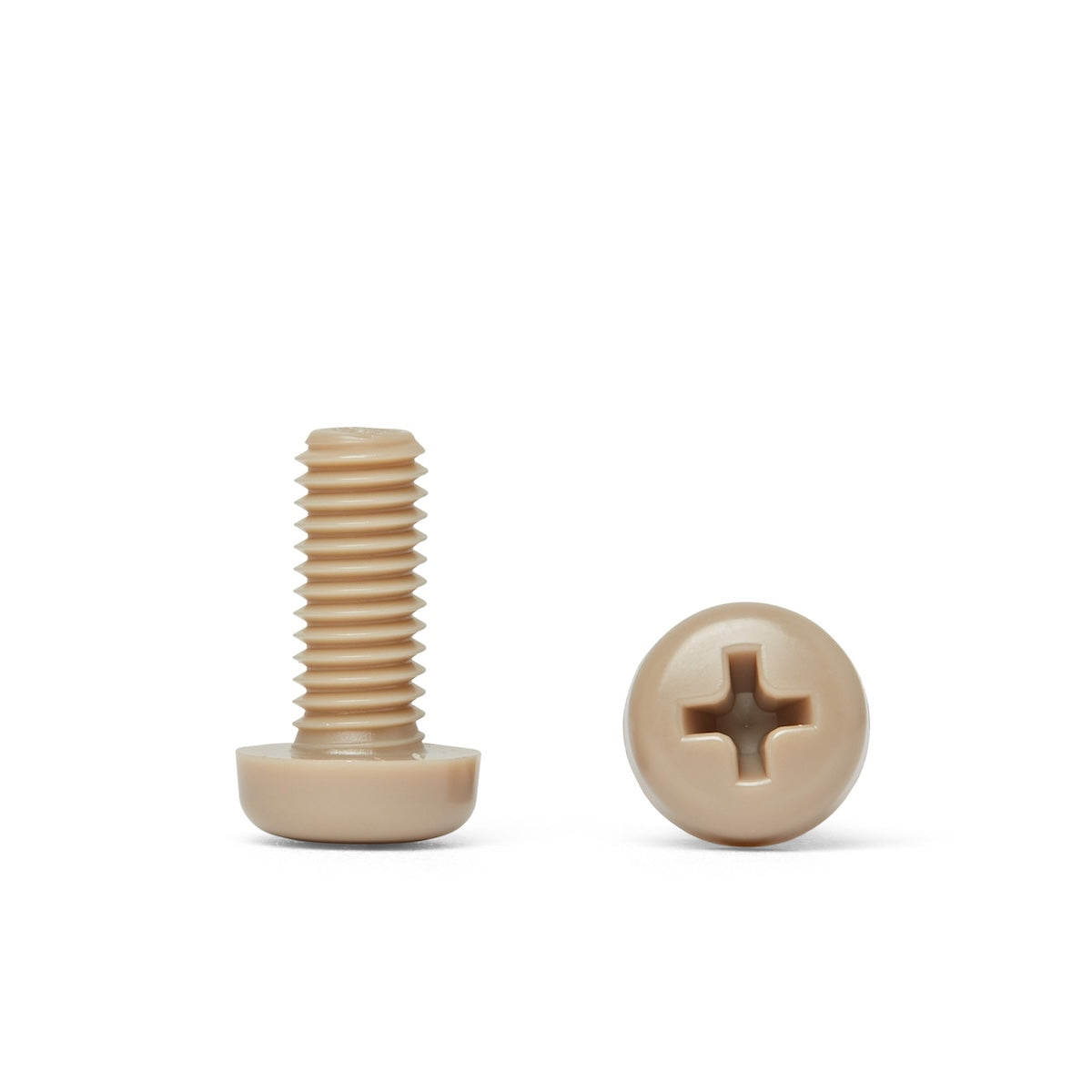

PEEK Pan Head Screws - Cross Recessed Phillips - DIN 7985

60 In Stock
SKU: PKPN1704
Regular price $1.31 - $2.02 CAD / each
Regular price Sale $3.41 CAD Sale price $1.31 - $2.02 CAD

Volume Discounts Available:

1 pc $2.02
20 pcs $1.92
50 pcs $1.82
100 pcs $1.62
250 pcs $1.52
500 pcs $1.41
1000 pcs $1.31
2000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PEEK

Measurement System: Metric

Drive Type: Cross Recessed/Phillips

Colour: Natural/Beige

Maximum Temperature: 260°C/500°F

Flammability: UL94 V-0

PEEK Pan Head Screws - Cross Recessed Phillips - DIN 7985 conform to the following Standards/Norms:

ISO 7045

DIN 7985

CSN 021147

PN 82202

UNI 7687

PEEK Pan Head screws are a great all round fastener for when general applications are required without pre-defined styles (counter-bores for socket cap heads or countersunk holes for Flat Head screws).

HPP’s Pan Head screws are manufactured using injection moulding techniques. The moulds have been developed over time to ensure quality within the threads and to minimise the gate residue (<5%) that occurs from the manufacturing process.

A common application for PEEK Pan head screws is high end electronics due to PEEK’s exceptional dielectric properties and RF transparency.

What are PEEK Pan Head Screws?

PEEK (polyetheretherketone) pan head screws are screws with a round, flat head and a cylindrical shank. They are made of PEEK, a type of plastic that is known for its high strength and durability. PEEK is a semi-crystalline, high-temperature plastic that is resistant to chemical and mechanical wear, as well as high temperatures.

Pan head screws are used to fasten two or more parts together and are tightened using a screwdriver or drill. They are known for their versatility and are commonly used in a variety of applications, including aerospace, automotive, and medical device manufacturing.

PEEK pan head screws are a good choice for applications where strength, durability, and resistance to high temperatures are important factors. They are also resistant to chemical attack and are resistant to wear and damage from mechanical stress. Like other types of screws, they are available in a range of sizes and thread types to suit different needs.

In terms of specific applications, PEEK pan head screws are often used to fasten components such as hinges, handles, and brackets to doors, cabinets, and other structures. They can also be used to fasten electrical components and other hardware in place.

The PEEK data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

PEEK Pan Head Screws - Cross Recessed Phillips - DIN 7985

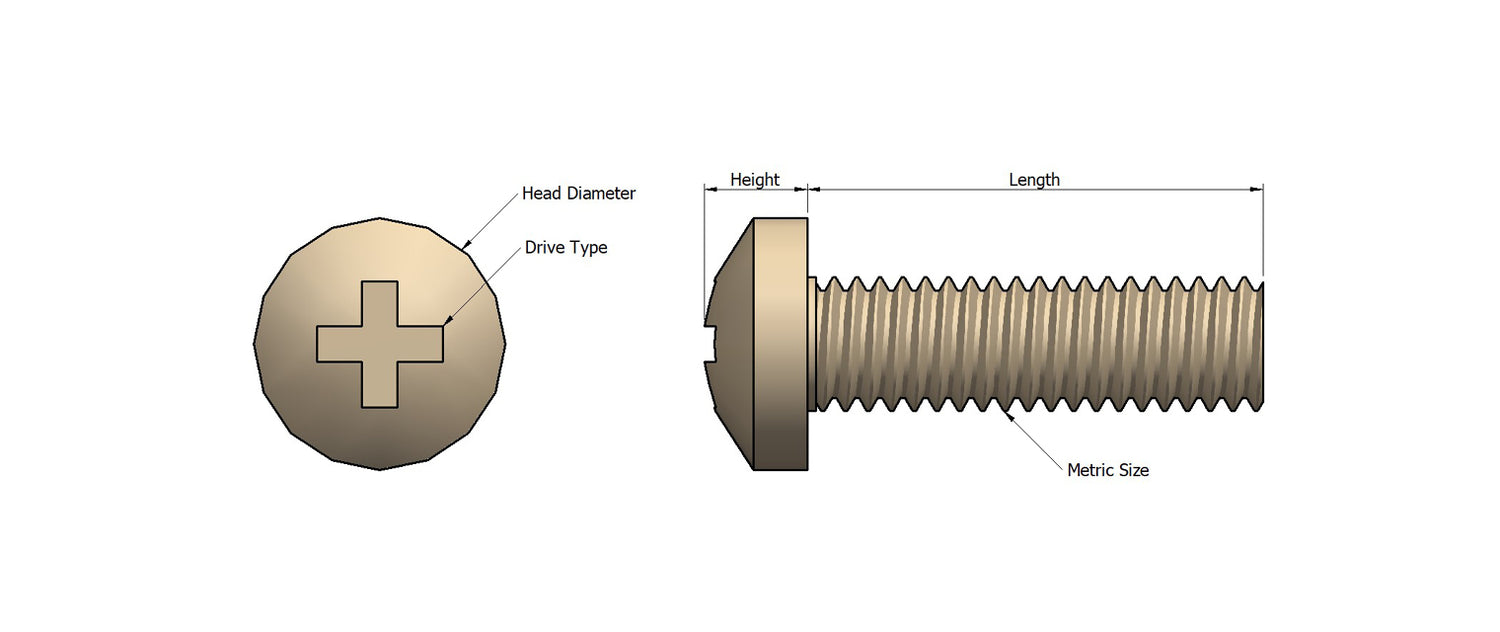

Product Drawing

Pan Head Screw Dimension Table (ISO7045/DIN7985)
M Size Pitch (mm) Head Diameter (mm) Head Height (mm)
M1.7 0.35 2.5 0.5
M2 0.4 3.5 1.3
M2.5 0.45 4.5 1.7
M2.6 0.45 4.5 1.7
M3 0.5 5.5 2.0
M4 0.7 7.0 2.6
M5 0.8 9.0 3.3
M6 1.0 10.0 3.9
M8 1.25 14.0 5.2

Dimension Table

Dimensions for PEEK Pan Head Screws - Cross Recessed Phillips - DIN 7985 in all available sizes are shown according to the product drawing above.

Key Polyether Ether Ketone (PEEK) Properties

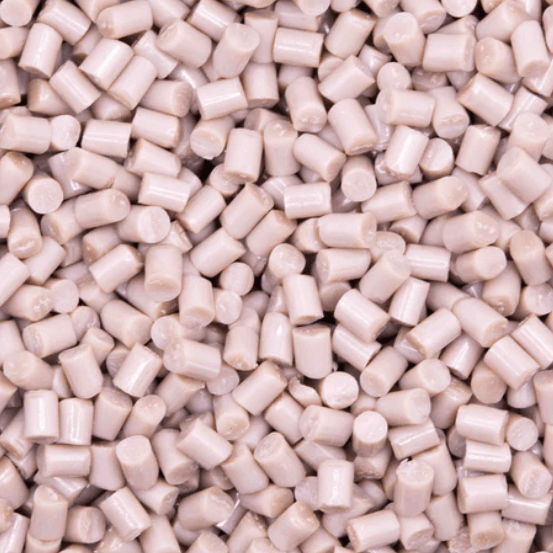

Victrex® 450G Natural PEEK Granule - High Performance Polymer-Plastic Fastener Components

Polyether Ether Ketone (PEEK) Datasheet

Follow the link below to view our PEEK data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PEEK Key Properties

  • Exceptional chemical resistance - PEEK can only be dissolved in high concentrations of Nitric and Sulphuric acids.

    Exceptional dimensional stability - Even at high temperatures (260°).

    Low Radio Frequency noise - Comparable to air.

    Excellent weight to strength ratio - Specific gravity (1.30).

  • - High heat operation (260°C)

    - High tensile strength (97mpa)

    - Ultra low weight

    - Flame resistance

    - Abrasion resistance

    - Hydrolysis resistance

  • - Highly resistant to radiation

    - Non-Magnetic

    - Very low outgassing in high vacuum

    - Low thermal conductivity

    - Non-Corrosive

    - Food safe (FSA/FDA Approved)
