PEEK Flat Washers - DIN 125 A

Manufactured to order.
SKU: PKWAM014
Regular price $1.69 - $2.60 CAD / each
Regular price Sale $3.46 CAD Sale price $1.69 - $2.60 CAD

Volume Discounts Available:

1 pc $2.60
20 pcs $2.47
50 pcs $2.34
100 pcs $2.08
250 pcs $1.95
500 pcs $1.82
1000 pcs $1.69
2000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PEEK

Measurement System: Metric

Colour: Natural/Beige

Maximum Temperature: 260°C/500°F

Flammability: UL94 V-0

PEEK Flat Washers - DIN 125 A conform to the following Standards/Norms:

ISO 7089

DIN 125 A

CSN 021702

PN 82006

UNI 6592

Polyether Ether Ketone (PEEK) flat washers are the pinnacle of polymer washers and are commonly utilised in extreme or specialist applications.

Our PEEK flat washers are compliant with DIN 125 specification and can be used in combination with an array of different material fasteners depending on application. The PEEK flat washers available are in standard metric sizes (M2- M12).

An example application where our PEEK flat washers have been used consists of being deployed between several PCBs to ensure they remain at the correct separation under load. The PCB components were part of a battery powered downhole tractor which can pull fibre optic cables into a oil well for ~5000m.

What are PEEK Flat Washers?

PEEK (polyetheretherketone) flat washers are washers made of PEEK, a type of plastic that is known for its high strength and durability. PEEK is a semi-crystalline, high-temperature plastic that is resistant to chemical and mechanical wear, as well as high temperatures.

Flat washers are used to distribute the load of a fastener, such as a bolt or screw, over a larger area. They can also be used to provide a smooth surface for the fastener to bear against, or to prevent damage to the material being fastened. Flat washers are usually placed between the fastener head and the material being fastened, and are often used in conjunction with nuts or other types of fasteners.

PEEK flat washers are a good choice for applications where strength, durability, and resistance to high temperatures are important factors. They are also resistant to chemical attack and are resistant to wear and damage from mechanical stress. Like other types of washers, they are available in a range of sizes to suit different needs.

PEEK flat washers are commonly used in a variety of industries, including aerospace, automotive, and medical device manufacturing. They are often used to fasten components such as hinges, handles, and brackets to doors, cabinets, and other structures. They can also be used to fasten electrical components and other hardware in place.

The PEEK data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

PEEK Flat Washers - DIN 125 A

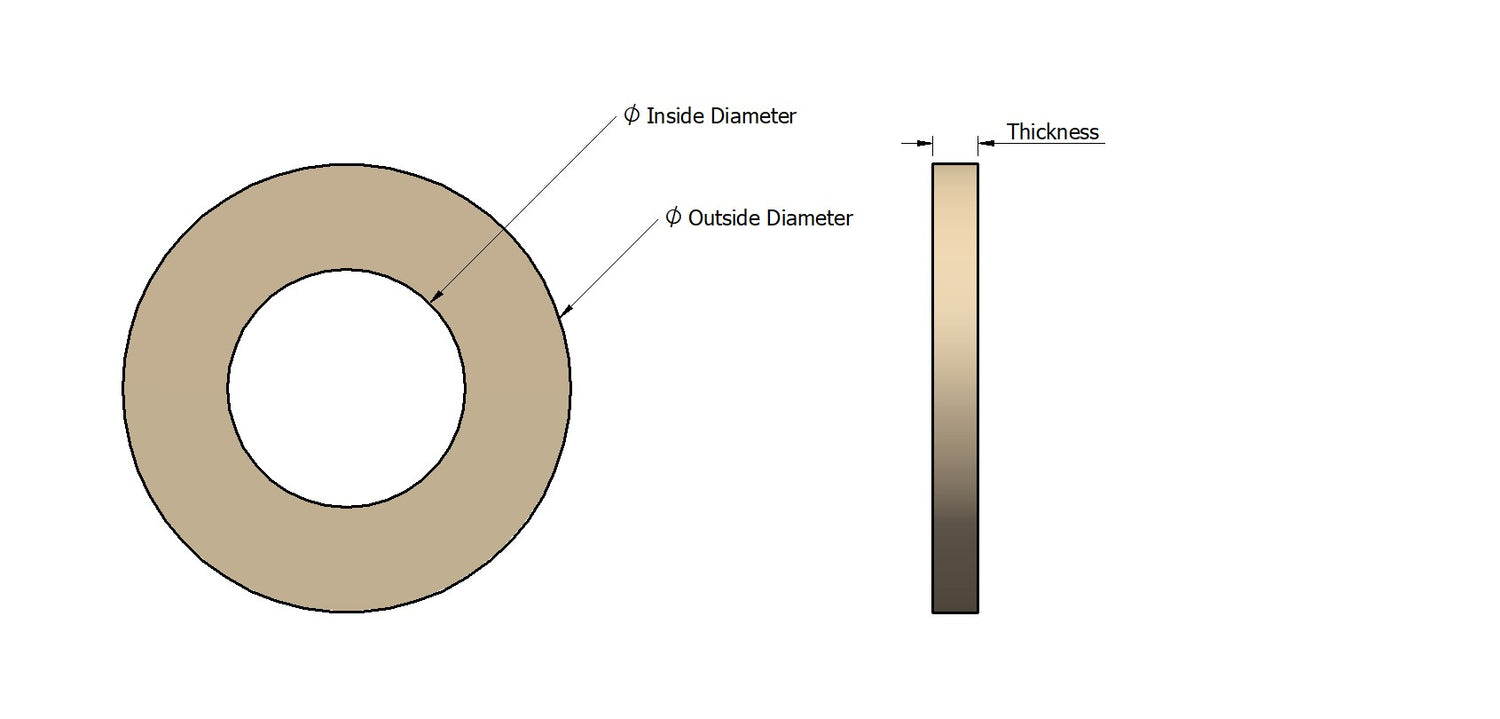

Product Drawing

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M1.6 1.7 3.7 0.25
M2 2.1 4.0 0.5
M2.6 2.7 6.0 0.5
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M16 17.0 30.0 3.0

Dimension Table

Dimensions for PEEK Flat Washers - DIN 125 A in all available sizes are shown according to the product drawing above.

Key Polyether Ether Ketone (PEEK) Properties

Victrex® 450G Natural PEEK Granule - High Performance Polymer-Plastic Fastener Components

Polyether Ether Ketone (PEEK) Datasheet

Follow the link below to view our PEEK data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PEEK Key Properties

  • Exceptional chemical resistance - PEEK can only be dissolved in high concentrations of Nitric and Sulphuric acids.

    Exceptional dimensional stability - Even at high temperatures (260°).

    Low Radio Frequency noise - Comparable to air.

    Excellent weight to strength ratio - Specific gravity (1.30).

  • - High heat operation (260°C)

    - High tensile strength (97mpa)

    - Ultra low weight

    - Flame resistance

    - Abrasion resistance

    - Hydrolysis resistance

  • - Highly resistant to radiation

    - Non-Magnetic

    - Very low outgassing in high vacuum

    - Low thermal conductivity

    - Non-Corrosive

    - Food safe (FSA/FDA Approved)
