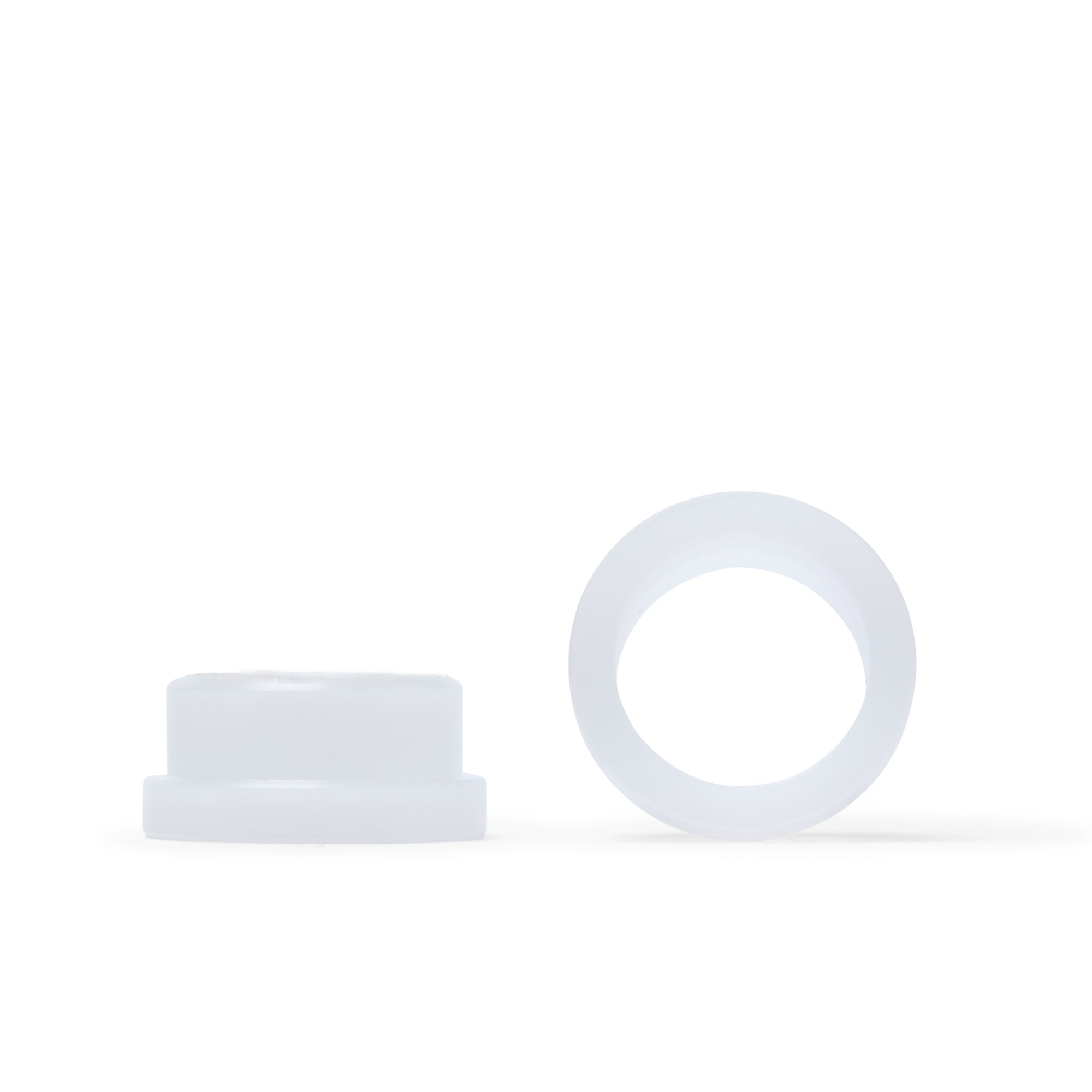

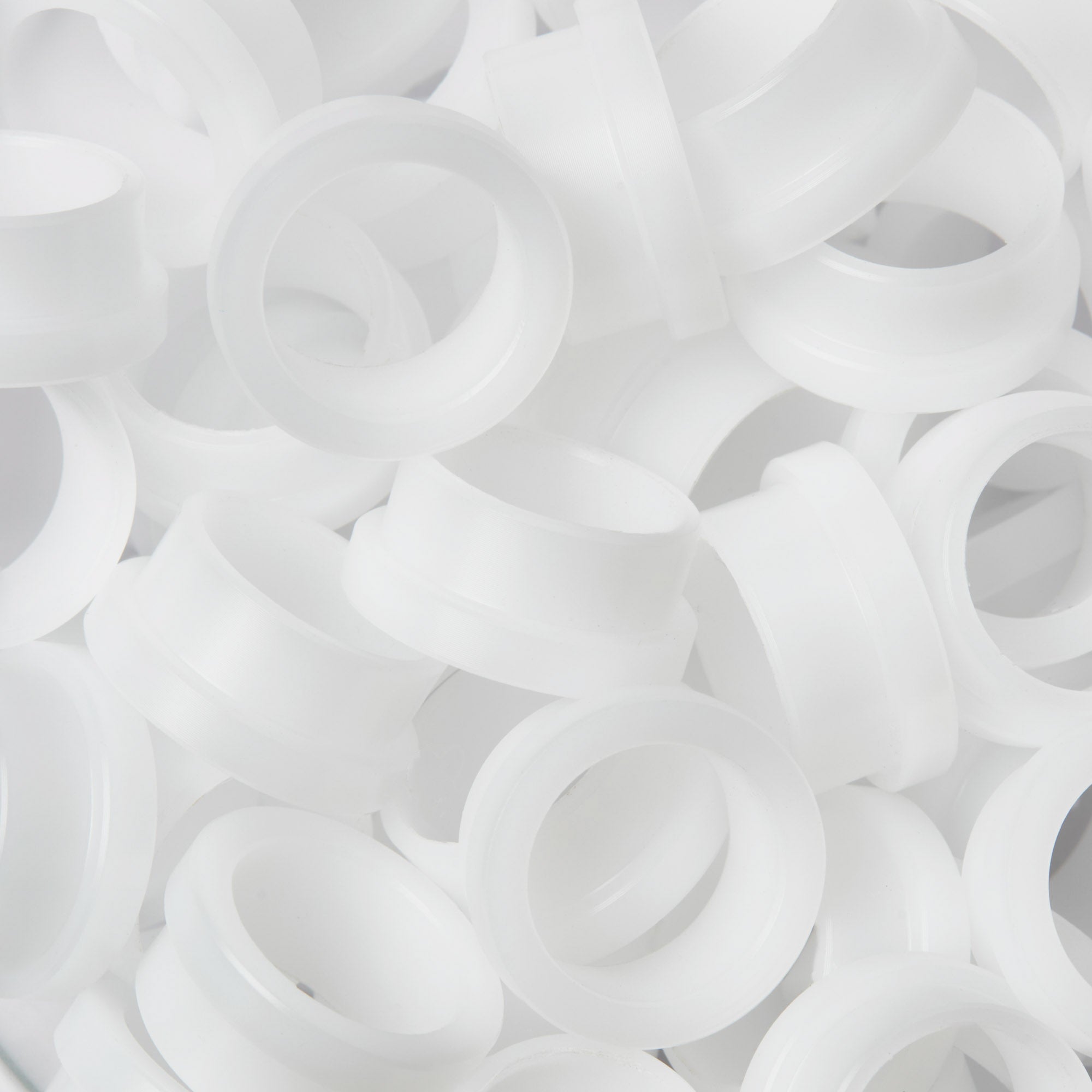

POM Flanged Bushing

Manufactured to order.
SKU: POMF4688
Regular price $1.78 - $2.74 CAD / each

Volume Discounts Available:

1 pc $2.74
500 pcs $2.60
1000 pcs $2.47
2500 pcs $2.19
5000 pcs $2.06
10000 pcs $1.92
20000 pcs $1.78
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: POM

Measurement System: Metric

Natural

Continuous use temperature: 95°C/203°F

Flammability: UL94 HB

POM Flanged Bushing conform to the following Standards/Norms:

POM Flanges, available with inside diameters ranging from 4mm to 20mm, are manufactured from Polyoxymethylene (POM), a highly durable engineering thermoplastic known for its excellent mechanical properties. These flanges are designed to provide reliable sealing and secure connections in various piping systems. POM is characterised by its high stiffness, low friction, and good dimensional stability, making it ideal for precision applications. The material also offers excellent chemical resistance and low moisture absorption, ensuring consistent performance in diverse environments. POM flanges are commonly used in industries where precision, durability, and resistance to wear and chemicals are essential.

Inside Diameter (mm) – 4, 5, 5.1, 9.7, 10, 12.7, 15.7, 20

Outside Diameter (mm) – 6, 8, 10, 15, 16, 19.3, 23, 26

Overall Length (mm) – 5.5, 5.9, 8, 8.8, 9, 11, 16.5, 18, 20, 21.5

Advantages of Using POM Flanges:

High Mechanical Strength: POM flanges exhibit excellent tensile and impact strength, making them suitable for applications requiring robust and durable connections.

Low Friction and Wear Resistance: The low coefficient of friction in POM ensures smooth operation and reduces wear, prolonging the lifespan of both the flanges and the connected components.

Good Dimensional Stability: POM maintains its shape and size under varying temperatures and moisture conditions, ensuring precise and reliable connections.

Chemical Resistance: POM resists a wide range of chemicals, including solvents and fuels, making these flanges ideal for use in chemically aggressive environments.

Low Moisture Absorption: The low moisture absorption rate of POM helps maintain its mechanical properties and dimensional stability in humid or wet environments.

Specific Applications of POM Flanges:

Automotive Industry:

Used in fuel systems, cooling systems, and other fluid handling components where chemical resistance and dimensional stability are crucial.

Plumbing and Fluid Handling:

Ideal for use in water treatment systems, irrigation systems, and other plumbing applications requiring reliable sealing and corrosion resistance.

Medical Devices:

Employed in medical equipment and devices where biocompatibility and chemical resistance are important, such as in fluid delivery systems.

Aerospace:

Used in aircraft systems requiring lightweight, durable, and chemically resistant components, such as in fuel and hydraulic systems.

Food and Beverage Industry:

Suitable for use in food processing and packaging machinery, benefiting from POM's low moisture absorption and chemical resistance.

Industrial Machinery:

Utilised in machinery requiring precise and durable components, such as gears, bearings, and conveyor systems.

POM Flanges, available in sizes with inside diameters ranging from 4mm to 20mm, are crafted from Polyoxymethylene (POM), known for its high mechanical strength, low friction, and excellent dimensional stability. These flanges are ideal for a variety of demanding applications in the automotive, plumbing, medical, aerospace, food and beverage, and industrial machinery sectors. POM's resistance to chemicals, low moisture absorption, and durability ensure these flanges provide reliable, long-lasting performance in diverse environments.

The POM data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Inside Diameter Outside Diameter (mm) Flange Diameter (mm) Overall Length (mm)
4 6 12 8.8
5 8 10 5.5
5 10 14 9
5.1 10 13 5.9
9.7 16 20 18
10 16 20.7 18
12.7 15 17.5 8
15.7 19.3 23 11
20 23 30 16.5
20 23 30 21.5
20 26 32 20

Dimension Table

Dimensions for POM Flanged Bushing in all available sizes are shown according to the product drawing above.

Key Polyacetal (POM) Properties

Polyacetal (POM) Compression Springs - High Performance Polymer-Plastic Fastener Components

Polyacetal (POM) Datasheet

Follow the link below to view our POM data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

POM Key Properties

  • Low Cost: Compared to other polymer components, POM is very cost effective, making it the perfect material for applications that require a high volume of components.

    High stiffness and strength: POM has a high modulus of elasticity, which means it is stiff and provides good structural support. It also has good tensile strength, which makes it resistant to breaking or cracking under tension.

    Low friction and wear resistance: POM has excellent wear resistance, which makes it suitable for use in applications that require sliding or rotating parts. It also has a low coefficient of friction, which means it can slide easily against other materials.


  • High fatigue resistance: POM has excellent fatigue resistance, which means it can withstand repeated cycles of stress without losing its mechanical properties.

    Excellent dimensional stability: POM has low water absorption and is highly resistant to creep, which means it maintains its shape and size over time. It also has low thermal expansion, which means it does not expand or contract significantly with changes in temperature.

    Chemical resistance: POM is highly resistant to a wide range of chemicals, including alcohols, aldehydes, esters, and many acids and bases. This makes it suitable for use in harsh environments where exposure to chemicals is a concern.

  • Electrical insulation properties: POM is an excellent insulator and has good dielectric strength, which makes it suitable for use in electrical applications where high insulation properties are required.
