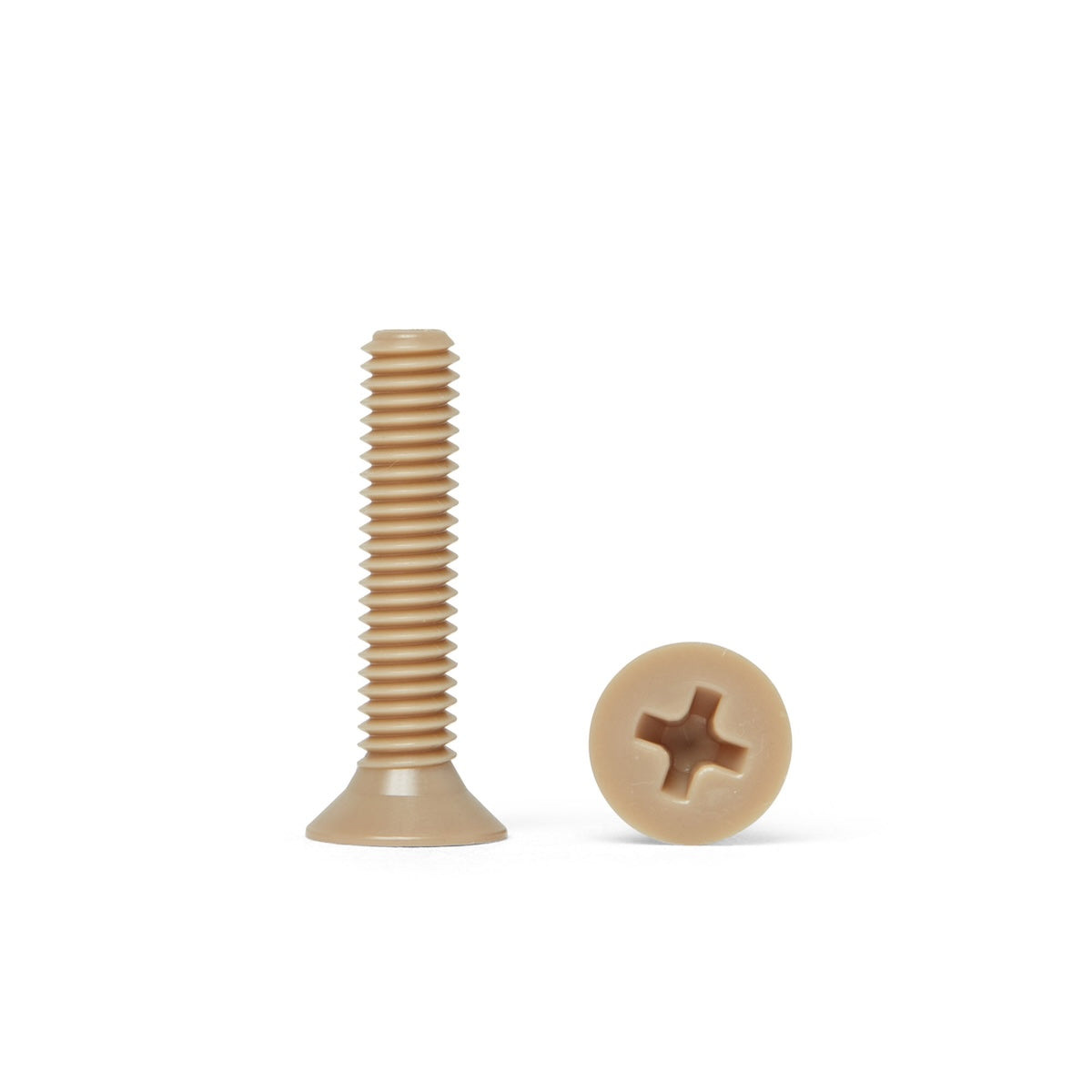

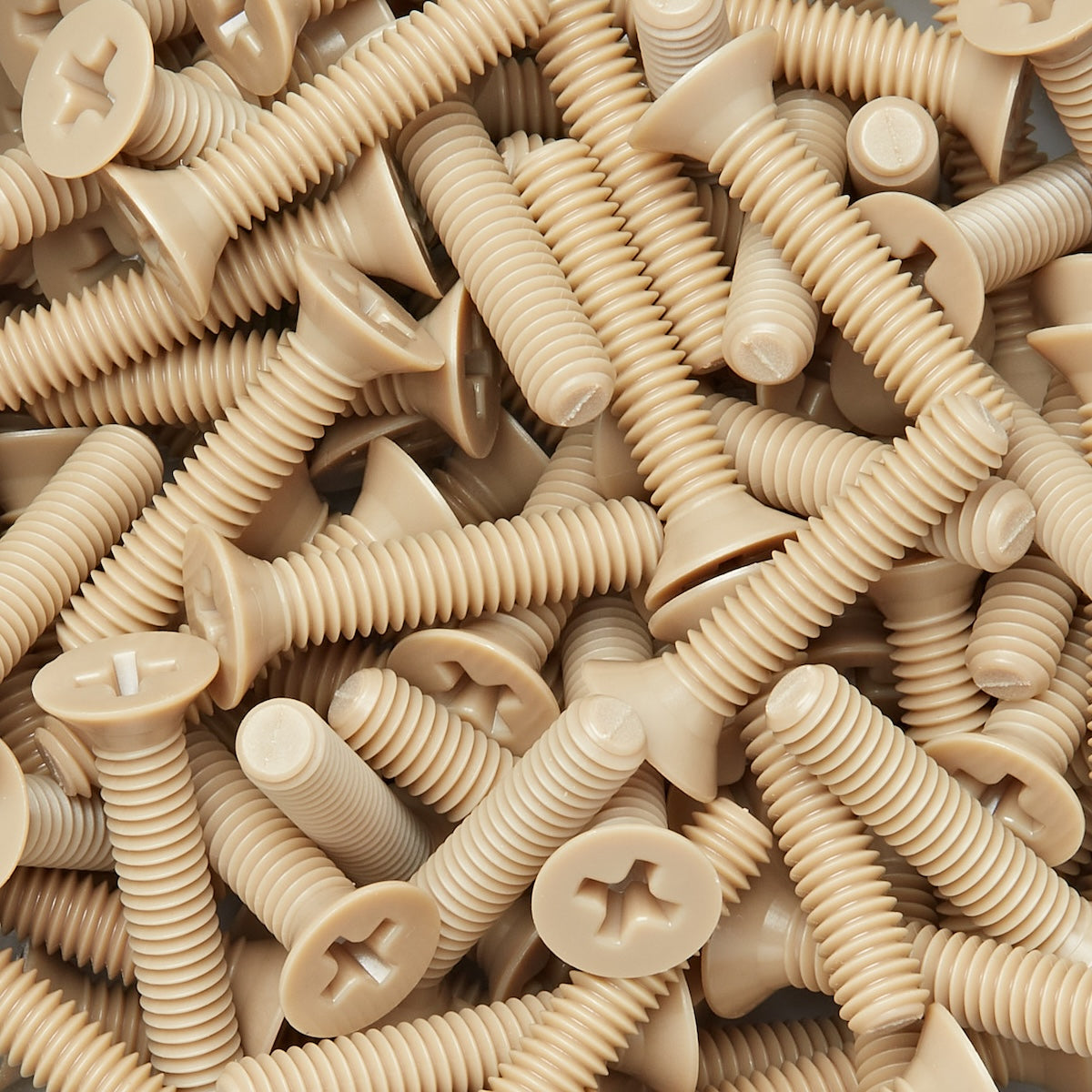

PEEK (GF30) Countersunk Flat Head Screws
Material: PEEK GF30
Measurement System: Metric
Drive Type: Cross Recessed/Phillips
Continuous use temperature: 260°C/500°F
Flammability: UL94 V-0
PEEK (GF30) Countersunk Flat Head Screws conform to the following Standards/Norms:
PEEK GF30 is a 30% glass fibre reinforced super engineered polymer, it combines the high strength and stiffness from glass fibre with the highly desired characteristics of Polyether Ether Ketone (PEEK).
Our PEEK GF30 Countersunk screws comply with the DIN 965 standard and are highly regarded due to their competitive pricing and exceptional quality.
Phillips drive type comes as standard with drive types from #1 to #3.
30% Glass fibre reinforced PEEK enables the tensile strength of these screws to rise from 97Mpa to 167Mpa. This enables even more applications to utilise PEEK material characteristics, even when a much high tensile strength is required.
A common application our customers use for this type of screw is within the oil industry, this is due to the increased tensile strength of the material, allowing for use in extremely high pressure environments.
Certificate of conformity available on request.
What are PEEK (GF30) Countersunk Screws?
PEEK (polyetheretherketone) is a high performance polymer that is known for its exceptional mechanical strength, chemical resistance, and temperature resistance. "GF30" refers to the fact that the PEEK material has been reinforced with 30% glass fibers, which increases its strength and stiffness. A countersunk screw is a type of fastener with a flat-bottomed head and a conical shape, designed to be flush with the surface of the material it is being used to fasten.
PEEK (GF30) countersunk screws are therefore fasteners made of a PEEK polymer reinforced with 30% glass fibers, with a flat-bottomed head and a conical shape. These screws may be used in applications where high strength and temperature resistance are required, such as in the aerospace, automotive, and chemical processing industries. They may also be used in medical and surgical devices, as well as in consumer electronics and other high-tech applications. PEEK (GF30) countersunk screws may be used to fasten parts together, such as in the assembly of machinery or equipment, or to secure parts in place, such as bearings and gears. They may be used in applications where a flush finish is desired, such as in the construction of aircraft or other high-tech products.
The PEEK GF30 data sheet is available as a PDF to download below.
Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
|Countersunk/Flathead Screw Dimension Table (ISO 7046/DIN 965)
|Head Diameter (mm)
Dimensions for PEEK (GF30) Countersunk Flat Head Screws in all available sizes are shown according to the product drawing above.
PEEK GF30 (30% Glass Fibre Reinforced Polyether Ether Ketone) Datasheet
Follow the link below to view our PEEK GF30 data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.
PEEK GF30 Key Properties
Why Choose High Performance Polymer?
50,000+ Fasteners In stock
No long lead times. We have a large range of PEEK fasteners available for express delivery (Dispatched the same day if ordered before 3PM Monday-Thursday).
Fasteners not available for express delivery will display the expected delivery date above the 'add to cart' button.
Manufacturer Direct Distributor
We are a manufacturer direct distributor, this allows us to ensure highly competitive prices and keep our shelves stocked. All of our products are manufactured to the highest standards and exhibit exceptional characteristics.
Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.
We provide full material traceability and can provide certification confirming material data and batch number, which can be traced back to the manufacturer.
Certificate Of Conformity
We also provide a certificate of conformity on request, confirming the product manufacturing standard and material.
