PEEK Micro Countersunk Flat Head Screws
Measurement System: Metric
Drive Type: Cross Recessed/Phillips
Maximum Temperature: 260°C/500°F
Flammability: UL94 V-0
PEEK Micro Countersunk Flat Head Screws conform to the following Standards/Norms:

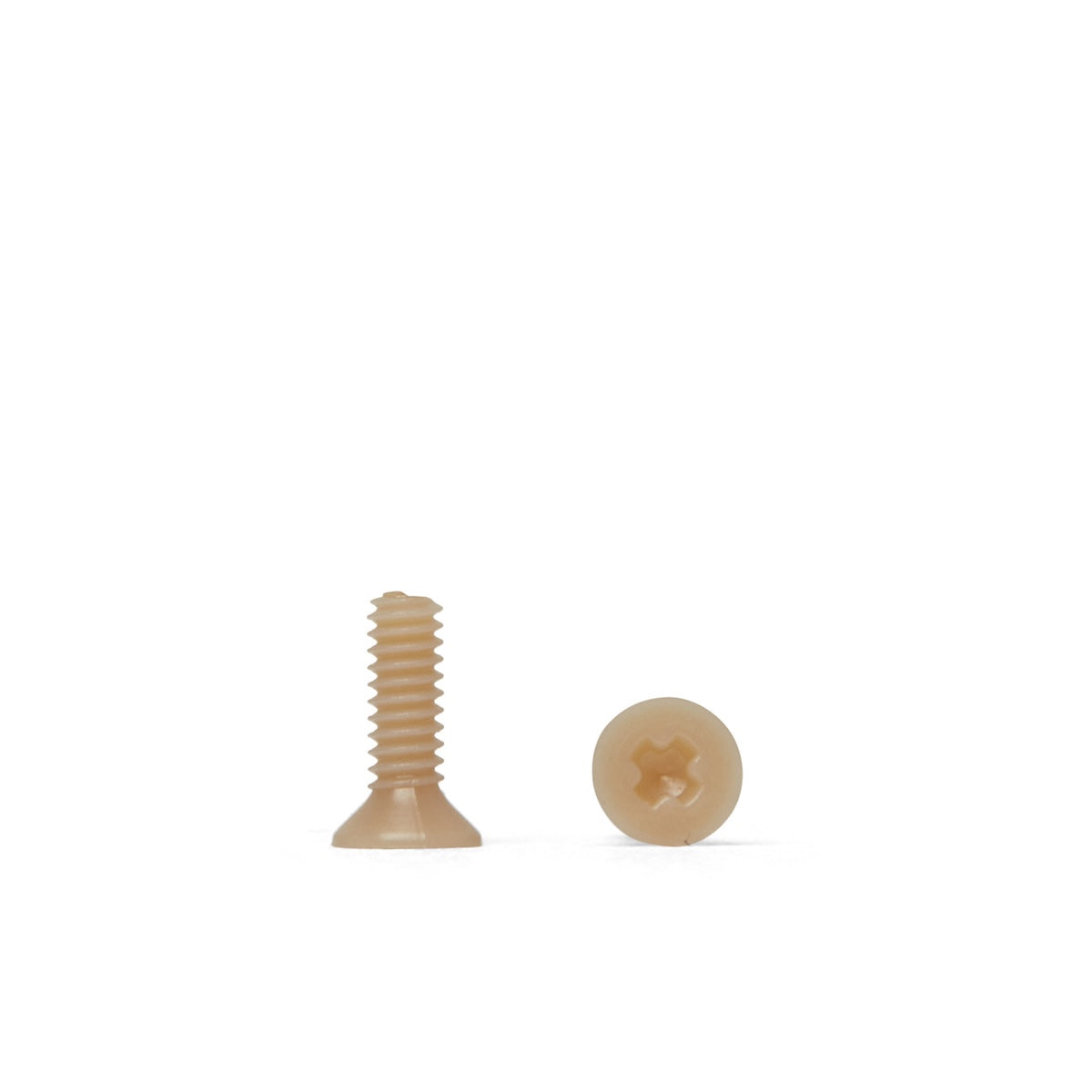

PEEK Micro countersunk (also known as Flat Head) screws are available in ‘micro’ sizes ranging from M1.2 to M1.6 and lengths 2.5mm to 4mm.
Micro countersunk screws are manufactured with a standard Phillips cross head drive type this allows for more than adequate torque for the fastener specification.
The standard head angle for all our countersunk screws is 90 Degrees.
Our countersunk screws are commonly used within the electronics sector due to being available in very small sizes.
Certificate of conformity available on request.
If you have any questions, please contact us.
What are PEEK Micro Countersunk Screws?
PEEK (polyetheretherketone) is a high-performance polymer that is resistant to high temperatures, chemicals, and wear. It is often used in demanding applications where traditional materials like metal or plastic may not be suitable.
Countersunk screws are screws with a conical head that is tapered and flat, allowing it to be sunk into the surface of the material it is fastened to. They are used in applications where a flush finish is desired, as the head of the screw sits flush with the surface of the material.
Micro countersunk screws are a type of countersunk screw with a very small head size. They are used in applications where space is limited and a small head size is necessary.
PEEK micro countersunk screws are micro countersunk screws made of PEEK material. They are used in a variety of applications where the combination of the strength and chemical resistance of PEEK with the convenience of a countersunk screw is desirable. They are typically used in high-performance and demanding applications where traditional materials may not be suitable.
The PEEK data sheet is available as a PDF to download below.
Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
|Micro Countersunk/Flathead Screw Dimension Table
|Head Diameter (mm)
Dimensions for PEEK Micro Countersunk Flat Head Screws in all available sizes are shown according to the product drawing above.
PEEK Key Properties
Why Choose High Performance Polymer?
50,000+ Fasteners In stock
No long lead times. We have a large range of PEEK fasteners available for express delivery (Dispatched the same day if ordered before 3PM Monday-Thursday).
Fasteners not available for express delivery will display the expected delivery date above the 'add to cart' button.
Manufacturer Direct Distributor
We are a manufacturer direct distributor, this allows us to ensure highly competitive prices and keep our shelves stocked. All of our products are manufactured to the highest standards and exhibit exceptional characteristics.
Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.
We provide full material traceability and can provide certification confirming material data and batch number, which can be traced back to the manufacturer.
Certificate Of Conformity
We also provide a certificate of conformity on request, confirming the product manufacturing standard and material.
