PEEK Hexagon Nuts
Measurement System: Metric
Drive Type: Hexagon (External)
Maximum Temperature: 260°C/500°F
Flammability: UL94 V-0
PEEK Hexagon Nuts conform to the following Standards/Norms:
PEEK Hexagon Nuts are an absolute necessity if a predefined tapped hole within your component is not available. This ensures that the complete fastener array is compiled with the necessary characteristics to ensure effective operation without failure.
Our PEEK Hexagon Nuts are complaint to with DIN 934 specification. We advise that our hexagon nuts are paired with PEEK Flat Washers to ensure no damage occurs to the fastener or the component when torquing.
An example application in which one of our customers have used our PEEK hexagon nuts, includes an assembly that we manufactured in house for use within a dark matter experiment. The entire assembly was machined from PEEK bar including some supporting rods that were threaded at each end. The hexagon nuts were used to fasten the assembly together in combination with our PEEK washers to ensure that the entire assembly consisted of the required characteristics (radiation resistance in this case) needed to ensure required function.
What are PEEK Hexagon Nuts?
PEEK (polyetheretherketone) hexagon nuts are nuts with a hexagonal shape and a threaded center hole. They are made of PEEK, a type of plastic that is known for its high strength and durability. PEEK is a semi-crystalline, high-temperature plastic that is resistant to chemical and mechanical wear, as well as high temperatures.
Hexagon nuts are used in conjunction with bolts or screws to fasten two or more parts together. When tightened, the bolt or screw passes through the center hole of the nut and is held in place by the threads on the inside of the hole.
PEEK hexagon nuts are a good choice for applications where strength, durability, and resistance to high temperatures are important factors. They are also resistant to chemical attack and are resistant to wear and damage from mechanical stress. Like other types of nuts, they are available in a range of sizes to suit different needs.
PEEK hexagon nuts are commonly used in a variety of industries, including aerospace, automotive, and medical device manufacturing. They are often used to fasten components such as hinges, handles, and brackets to doors, cabinets, and other structures. They can also be used to fasten electrical components and other hardware in place.
The PEEK data sheet is available as a PDF to download below.
Return components within 90 days for a full refund. Please see returns terms and conditions for further information.
|Hexagon Nut Dimension Table (ISO 4032/DIN 934)
|Width (Flat-Flat) (mm)

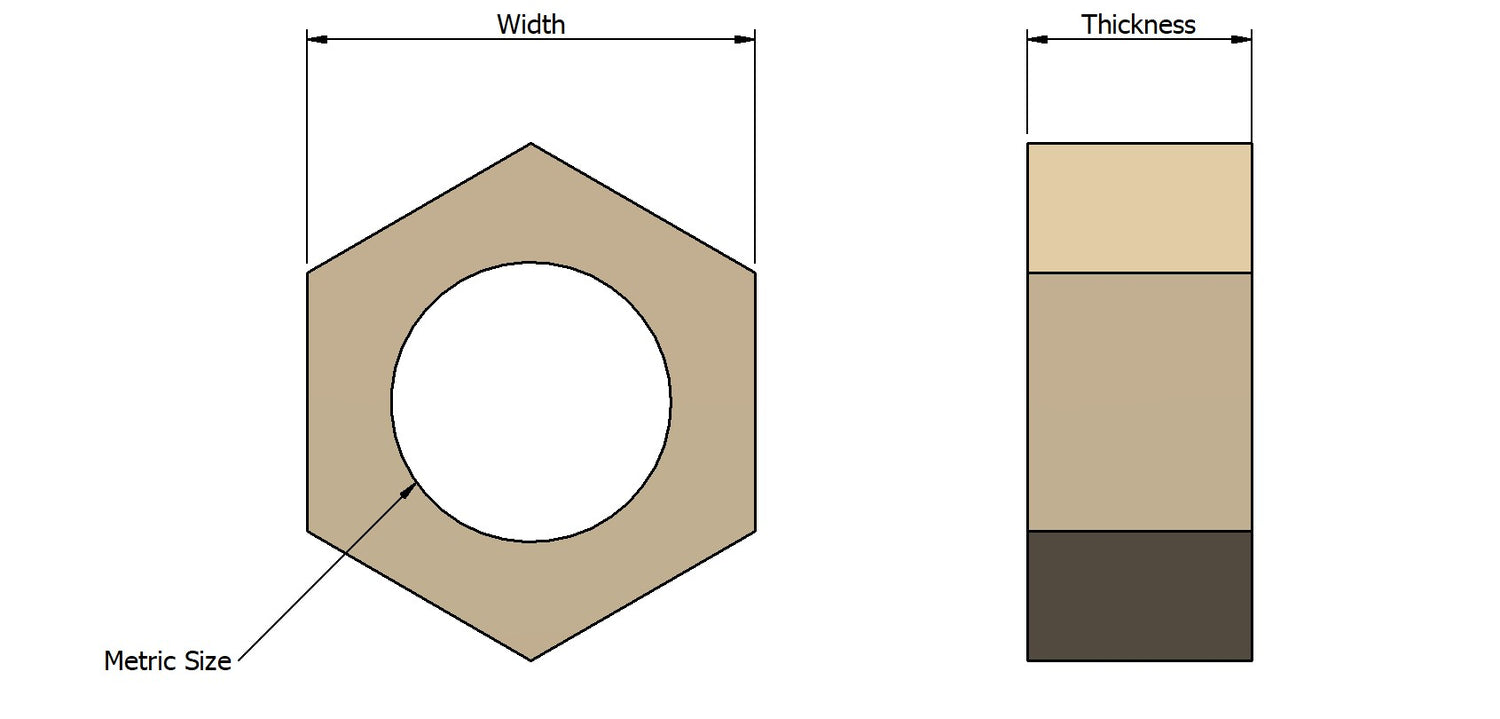

Dimensions for PEEK Hexagon Nuts in all available sizes are shown according to the product drawing above.
PEEK Key Properties
Why Choose High Performance Polymer?
50,000+ Fasteners In stock
No long lead times. We have a large range of PEEK fasteners available for express delivery (Dispatched the same day if ordered before 3PM Monday-Thursday).
Fasteners not available for express delivery will display the expected delivery date above the 'add to cart' button.
Manufacturer Direct Distributor
We are a manufacturer direct distributor, this allows us to ensure highly competitive prices and keep our shelves stocked. All of our products are manufactured to the highest standards and exhibit exceptional characteristics.
Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.
We provide full material traceability and can provide certification confirming material data and batch number, which can be traced back to the manufacturer.
Certificate Of Conformity
We also provide a certificate of conformity on request, confirming the product manufacturing standard and material.
