Home » Polyamide PA6 (Nylon) Flat Washer - Black - DIN 125 A
HPP PA®

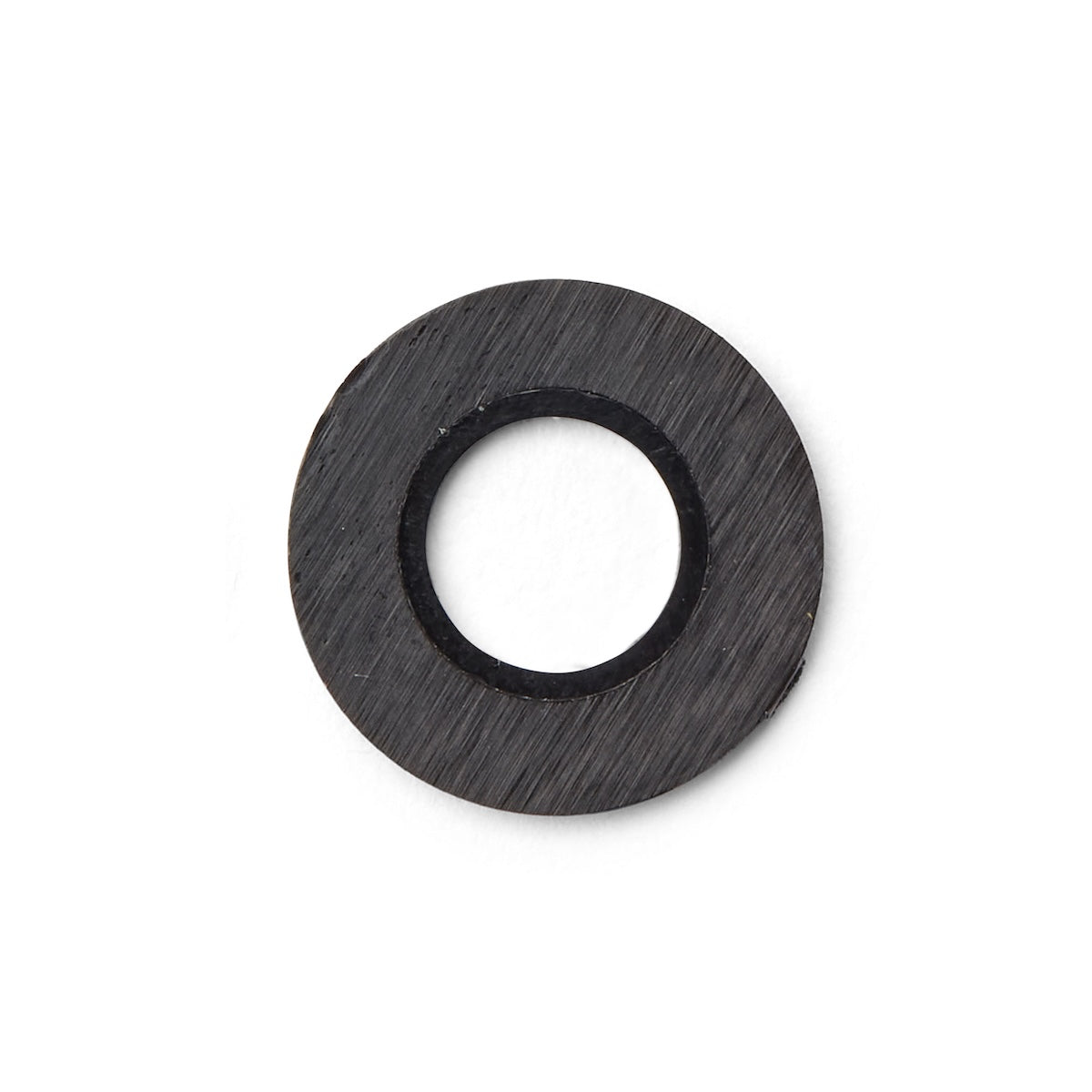

Polyamide PA6 (Nylon) Flat Washer - Black - DIN 125 A

Manufactured to order.
SKU: PAWB328005
£0.05 - £0.07 GBP / each
Sale £0.11 GBP £0.05 - £0.07 GBP

Volume Discounts Available:

1 pc £0.07
500 pcs £0.07
1000 pcs £0.06
2500 pcs £0.06
5000 pcs £0.05
10000 pcs £0.05
20000 pcs £0.05
30000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PA6

Measurement System: Metric

Colour: Black

Continuous use temperature: 80°C Maximum temperature: 150°C

Flammability UL94 HB-5VA

Polyamide PA6 (Nylon) Flat Washer - Black - DIN 125 A conform to the following Standards/Norms:

DIN 125 A

Polyamide PA6 (Nylon) Flat Washer - Black, available in sizes with Inner Diameters of 3.2mm to 5.5mm, Outer Diameters of 8mm to 12mm, and Thicknesses ranging from 0.5mm to 0.8mm, is a reliable and lightweight component ideal for a variety of fastening and insulation needs. PA6 is well-known for its excellent toughness, flexibility, and impact resistance, making it particularly suited for applications that involve dynamic loads and high vibration. Compared to other grades of polyamide, such as PA66, PA6 offers greater flexibility and lower moisture absorption, which makes it more adaptable in humid environments without compromising on mechanical strength and wear resistance.

Inner Diameter (mm) - 3.2-5.5mm

Outer Diameter (mm) - 8-12mm

Thickness (mm) - 0.5-0.8mm

Advantages of Using Polyamide PA6 (Nylon) Flat Washer - Black

  • High toughness and impact resistance, providing cushioning under dynamic loads.
  • Good wear resistance, ensuring long-lasting performance in moving or abrasive environments.
  • Flexibility and low moisture absorption, making it suitable for humid or wet applications.
  • Lightweight and easy to install, reducing stress on assemblies without sacrificing strength.
  • Chemical resistance to oils, greases, and solvents, allowing for use in various industrial settings.

Applications of Polyamide PA6 (Nylon) Flat Washer - Black
Polyamide PA6 Flat Washers - Black are widely used in the automotive industry for insulating fasteners, distributing loads, and reducing vibration in engine components and body assemblies. They are also commonly used in electronics for securing and insulating delicate components. In household appliances, these washers are employed in motors, fans, and other rotating parts to reduce noise and wear. Additionally, in construction and furniture assembly, they provide load distribution and protection for surfaces while preventing fasteners from loosening due to vibration.

Polyamide PA6 (Nylon) Flat Washer - Black, with sizes ranging from 3.2mm to 5.5mm Inner Diameter, 8mm to 12mm Outer Diameter, and 0.5mm to 0.8mm Thickness, offers a durable, flexible, and lightweight solution for a wide range of industrial applications. Its toughness, impact resistance, and ability to perform in humid environments make it an excellent choice for automotive, electronics, appliance, and construction applications where reliability and longevity are essential.

The PA6 data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

Polyamide PA6 (Nylon) Flat Washer - Black - DIN 125 A

Product Drawing

Key Polyamide Nylon (PA6) Properties

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PA6 Key Properties

  • Polyamide Nylon (PA6) is well-known for its high mechanical strength and toughness, making it an ideal material for components that require durability and impact resistance. PA6 exhibits excellent tensile strength, which allows it to withstand significant loads without deforming. This property is particularly valuable in applications such as automotive parts, industrial gears, and structural components, where the material must endure continuous mechanical stress. Additionally, PA6's toughness ensures that it can absorb shocks and impacts without cracking, making it suitable for both heavy-duty and high-impact applications.

  • Another key property of Polyamide Nylon (PA6) is its excellent abrasion and wear resistance. PA6's ability to resist surface wear and tear extends the lifespan of components that are subjected to constant friction or repetitive motion. This makes PA6 a preferred material for use in bearings, bushings, and gears, where long-term reliability and low maintenance are critical. Its wear resistance also ensures that PA6 components maintain their integrity and performance over time, even in harsh operating conditions, reducing the need for frequent replacements.

  • Polyamide Nylon (PA6) also offers good chemical and thermal resistance, making it versatile for various industrial applications. PA6 is resistant to many oils, greases, fuels, and chemicals, which allows it to perform well in environments where exposure to such substances is common. Its thermal resistance enables it to maintain its mechanical properties at elevated temperatures, making it suitable for applications that involve heat, such as engine components and electrical insulators. The combination of chemical and thermal resistance ensures that PA6 can be used in challenging environments without compromising its durability or functionality.
