PEEK Slotted Hexagon Bolts

PKSHB408
  • Sale
  • Regular price £2.48 / each

Price excludes VAT

0 Available for express delivery.

PRICE MATCH PROMISE

HPP price match against all UK suppliers. Found it cheaper? Contact us and we will beat it!

REQUIRE A QUOTE?

Simply add the required product(s) to the shopping cart and select 'request for quotation'.

WORLDWIDE SHIPPING

We ship worldwide! Same day dispatch for all express products ordered before 3PM GMT.

PEEK Slotted Hexagon Head Bolt Dimensions:

(mm)M4M5M6M8
Thread Pitch
0.70.81.01.25
ø Head Diameter
7.08.010.013.0
Head Height
2.83.54.05.5
Slot Depth1.41.82.12.8
Slot Width1.01.21.21.6

PEEK (POLYETHER ETHER KETONE)

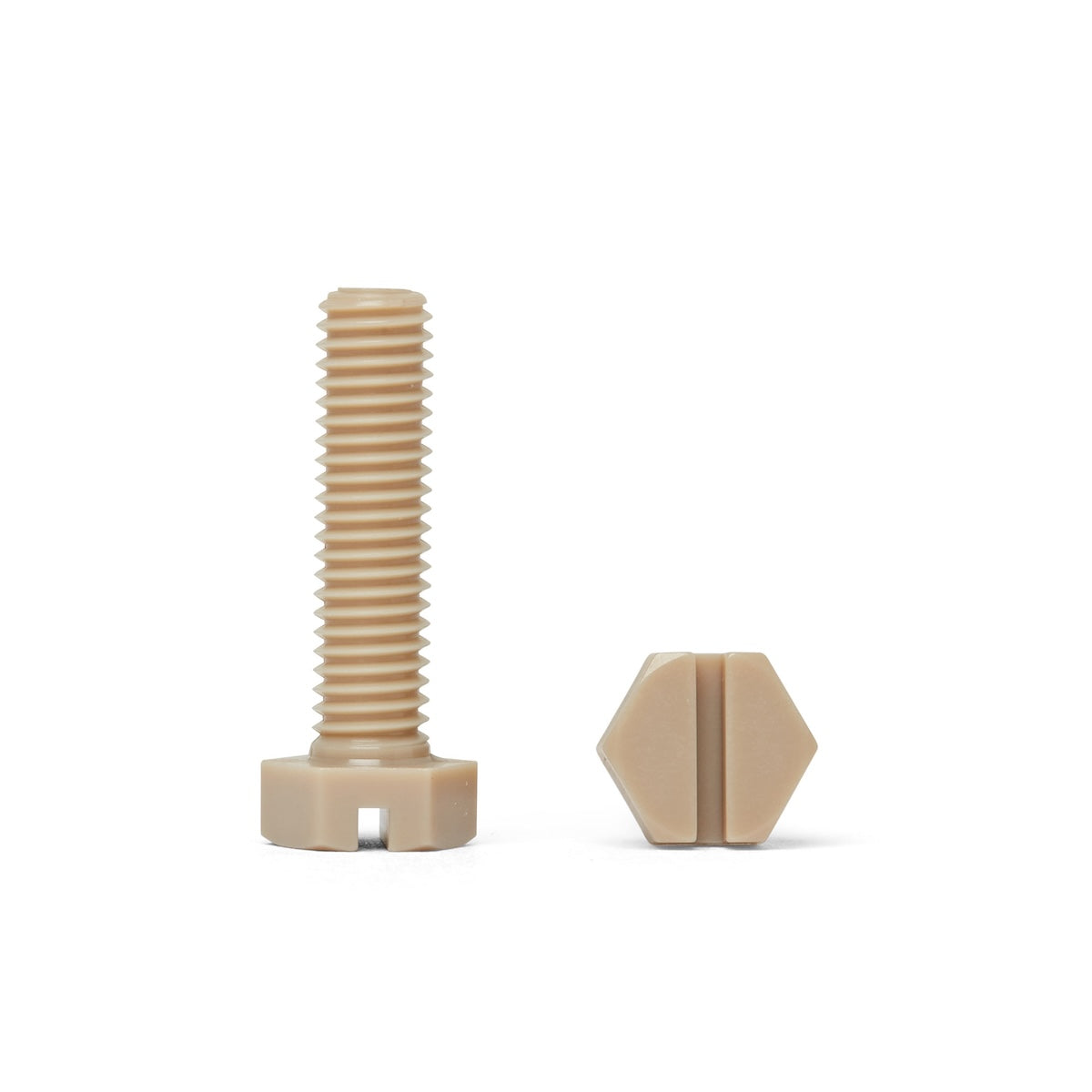

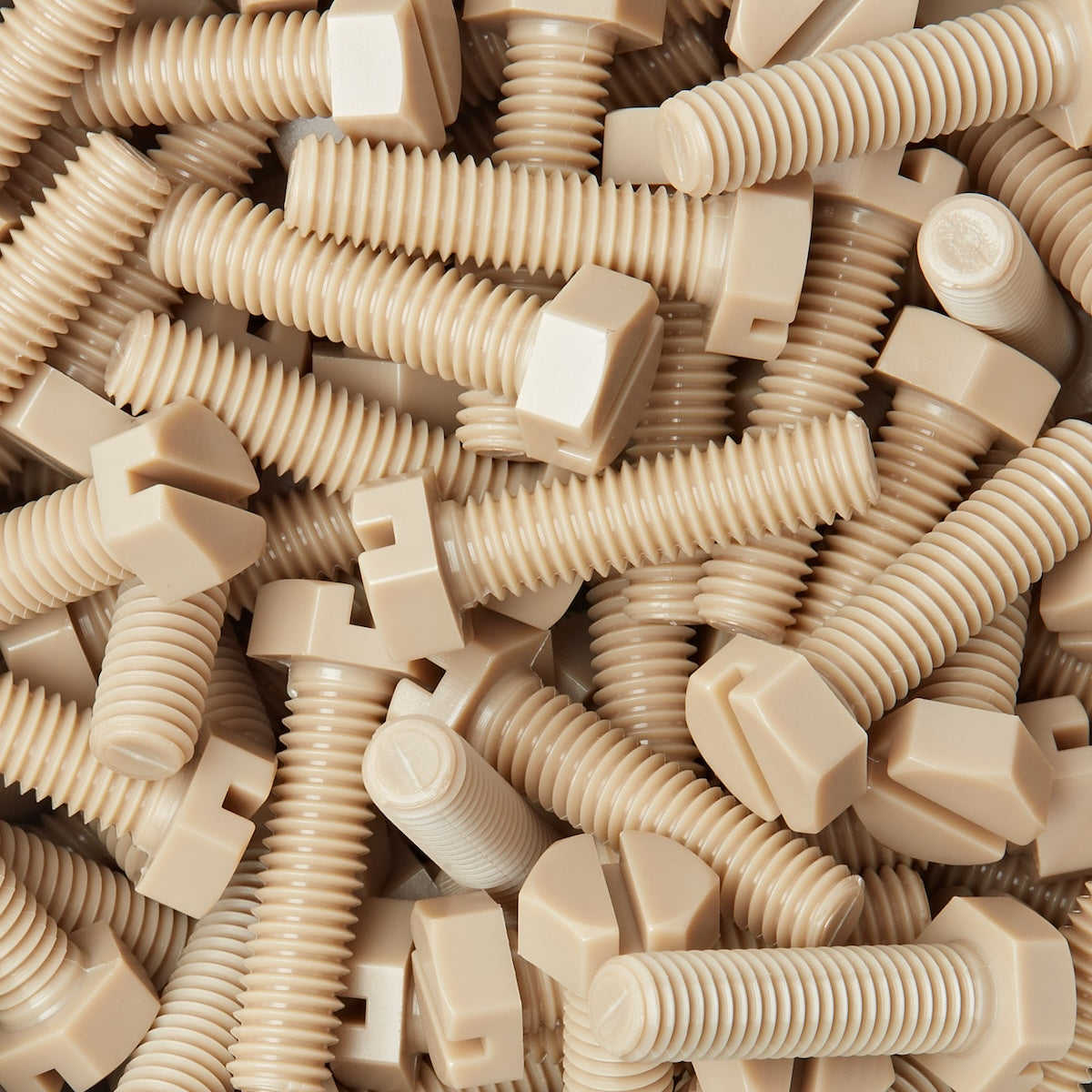

PEEK Slotted Hexagon Head Bolts

PEEK slotted hexagon head bolts are the most heavy-duty PEEK fastener we provide, paired with an alternative quick and easy drive solution.

Our slotted Hexagon Head bolts have a standard hexagonal drive type for use with a metric spanner or socket, while also including a slot for use with a flat blade screwdriver (dimensions stated in the table above).

We only supply the highest quality fasteners and our slotted hexagonal head bolts are no different. These are manufactured to the highest quality standard and to very tight tolerances. Each screw is individually checked both with metrology equipment dimensionally and individually for any material defects.

These bolts are perfect for fastening large high voltage cables due to the engineer being able to quickly initiate the threads with a flat blade screwdriver before torquing accurately with a socket.

These bolts can also be vented for use in vacuum systems.

Key Properties of PEEK Slotted Hexagon Head Bolts Include:

Exceptional chemical resistance
PEEK screws can only be dissolved in high concentrations of Nitric and Sulphuric acids.

Exceptional dimensional stability
Even at high temperatures (260°).

Low Radio Frequency noise
Comparable to air.

Excellent weight to strength ratio
Specific gravity (1.30).

  • High heat operation (260°C)
  • High tensile strength (97mpa)
  • Ultra low weight
  • Flame resistance
  • Abrasion resistance
  • Hydrolysis resistance
  • Highly resistant to radiation
  • Non-Magnetic
  • Very low outgassing
  • Low thermal conductivity
  • Non-Corrosive
  • Food safe (FSA/FDA Approved)

Exceptional chemical resistance
PEEK PEEK Slotted Hexagon Head Bolts can only be dissolved in high concentrations of Nitric and Sulphuric acids.

Exceptional dimensional stability
Even at high temperatures (260°).

Low Radio Frequency noise
Comparable to air.

Excellent weight to strength ratio
Specific gravity (1.30).

  • High heat operation (260°C)
  • High tensile strength (97mpa)
  • Ultra low weight
  • Flame resistance
  • Abrasion resistance
  • Hydrolysis resistance
  • Highly resistant to radiation
  • Non-Magnetic
  • Very low outgassing in high vacuum
  • Low thermal conductivity
  • Non-Corrosive
  • Food safe (FSA/FDA Approved)
PEEK Data Sheet

Follow the link below to view our PEEK fastener data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

View Data Sheet
Certificates Available On Request
