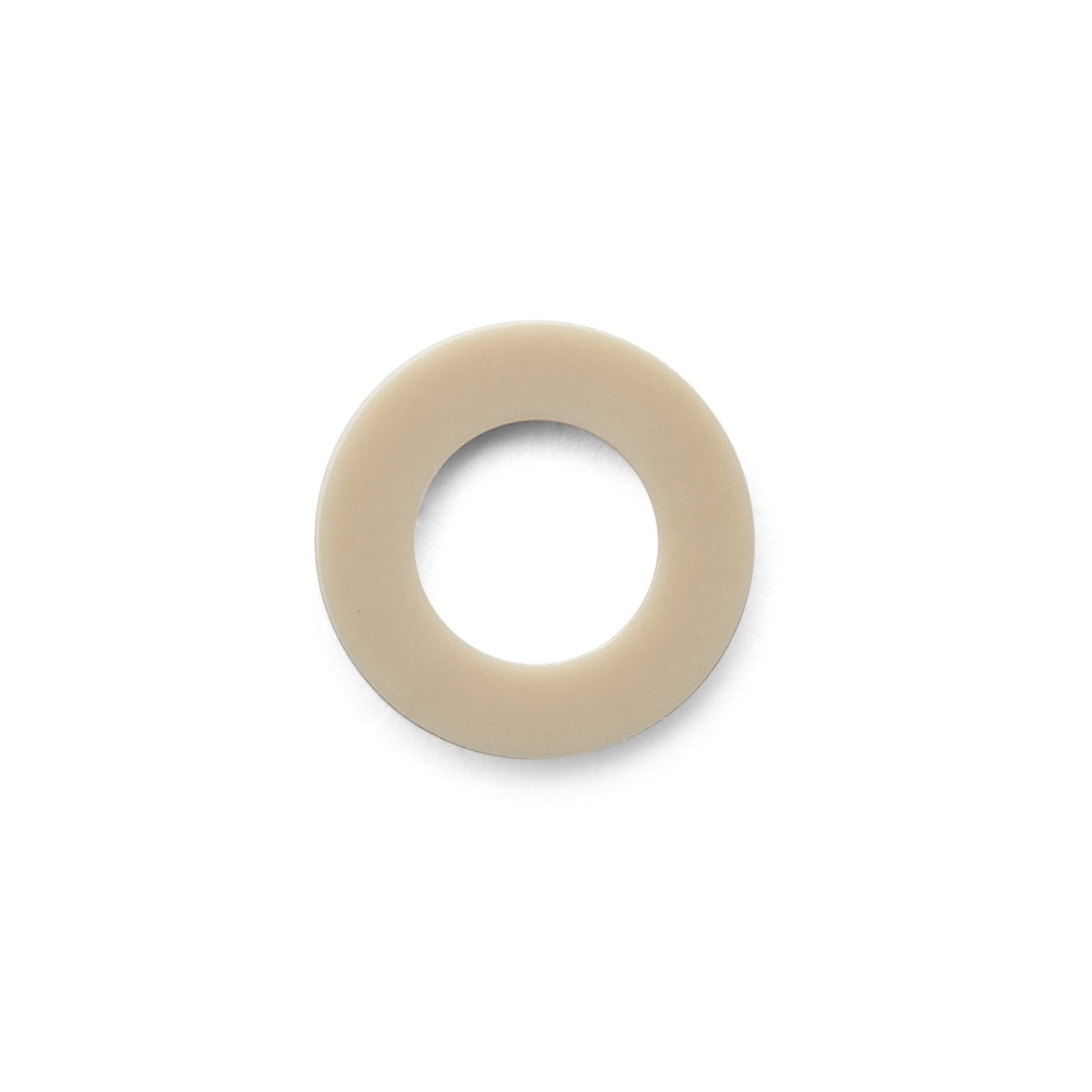

PPS Flat Washers - DIN 125 A

Manufactured to order.
SKU: PPSWAM3
Regular price £0.42 - £0.64 GBP / each
Regular price Sale £1.12 GBP Sale price £0.42 - £0.64 GBP

Volume Discounts Available:

1 pc £0.64
20 pcs £0.61
50 pcs £0.58
100 pcs £0.51
250 pcs £0.48
500 pcs £0.45
1000 pcs £0.42
2000+ pcs Contact us
Show more Show less
Want it by XYZ?
Want it by XYZ?

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom left of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

Instant Quote:
Submit a request for quote online by clicking the button below and a PDF quotation will be delivered to your inbox within 5 mins.

Request a Quote

Material: PPS

Measurement System: Metric

Colour: Natural/Beige

Continuous use temperature: 200°C/392°F

Flammability: UL94 V-0

PPS Flat Washers - DIN 125 A conform to the following Standards/Norms:

ISO 7089

DIN 125 A

CSN 021702

PN 82006

UNI 6592

PPS (Polyphenylene Sulphide) Flat washers have a large compressive strength capacity, which is perfect for high performance applications.

Our flat washers are compliant with DIN 125 specification and can be used in combination with an array of different material fasteners depending on application. PPS flat washers available are in standard metric sizes (M3- M12).

Why use PPS?

Our PPS range are reinforced with 40% glass fibre, this enables tensile strengths that are similar to our PEEK GF30 (30% glass-fibre reinforced) range, however with a much larger range of sizes and with reduced cost.

PPS has characteristics that are positioned perfectly between our RENY and PEEK range.

PPS Datasheet available below.

 If further information is required, please contact us.

What are PPS Flat Washers?

PPS (polyphenylene oxide) is a high-performance polymer that is resistant to high temperatures and chemicals. It is often used in demanding applications where traditional materials like metal or plastic may not be suitable.

Flat washers are a type of mechanical fastener that is used to distribute load and provide a smooth bearing surface when fastening two components together. They are typically made of metal or plastic and are used in conjunction with bolts, screws, and nuts to prevent damage to the material being fastened. Flat washers are characterized by their flat shape and circular outer diameter.

PPS flat washers are flat washers made of PPS material. They are used in a variety of applications where the combination of the strength and chemical resistance of PPS with the convenience of a flat washer is desirable. They are typically used in high-performance and demanding applications where traditional materials may not be suitable.

The PPS data sheet is available as a PDF to download below.

Return components within 90 days for a full refund. Please see returns terms and conditions for further information.

PPS Flat Washers - DIN 125 A

Product Drawing

Flat Washer Dimension Table (ISO7089/DIN125A)
M Size Inside Diameter (mm) Outside Diameter (mm) Thickness (mm)
M1.6 1.7 3.7 0.25
M2 2.1 4.0 0.5
M2.6 2.7 6.0 0.5
M3 3.2 7.0 0.5
M4 4.3 9.0 0.8
M5 5.3 10.0 1.0
M6 6.4 12.5 1.6
M8 8.4 17.0 1.6
M10 10.5 21.0 2.0
M12 13.0 24.0 2.5
M16 17.0 30.0 3.0

Dimension Table

Dimensions for PPS Flat Washers - DIN 125 A in all available sizes are shown according to the product drawing above.

Key Polyphenylene Sulphide (PPS) Properties

PPS Pan Head Screws - Cross Recessed Phillips - High Performance Polymer-Plastic Fastener Components

Polyphenylene Sulphide (PPS) Datasheet

Follow the link below to view our PPS data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

Custom Manufacturing

Can't find a component?

We can manufacture components to your specification in any of our performance polymer materials. Click on the link, fill out a short form and you'll receive a competitive, no obligation quote within 24 hours.

Request a Quote

PPS Key Properties

  • Exceptional tensile strength - 185 MPa Standard.

    Exceptional dimensional stability - Even at high temperatures (200°).

    Ideal alternative to PEEK - Encompasses characteristics similar to RENY and PEEK.

    Excellent weight to strength ratio - Specific gravity (1.66).

  • - High operation temperature up to 200°C

    - Ultra low weight

    - Flame resistance (V-0)

    - Abrasion resistance

    - Hydrolysis resistance

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

ISO 9001 Certified

Certified through Quality Veritas. High Performance Polymer conforms to the ISO9001 quality management system. Certificates available on request.

Certificate Of Conformity

Product certificate of conformity available on request, confirming the product manufacturing standard and material.

Material Certificates

Full material traceability and certification confirming the material data and raw material batch number, which can be traced back to the manufacturer.

Highly Competitive Prices

We offer price matching against all UK distrubutors. All of our products are manufactured to the highest standards and exhibit exceptional characteristics.
