PTFE Teflon Hexagon Nuts

124 in stock now, more available within 14 days.
SKU: PFEHNM3
Regular price $1.19 USD / each
Regular price Sale $2.46 USD Sale price $1.19 USD

Instant Quote Guarantee:
Submit a request for quote online by clicking the button below and it'll be delivered to your inbox within 5 mins.

Request For Quote

Need Help?
Our team are always happy to help!
Live Chat: Available from the bottom right of your screen.
Email: sales@highperformancepolymer.com
Phone: +44(0)1865 684080

PTFE Teflon Hexagon Nuts

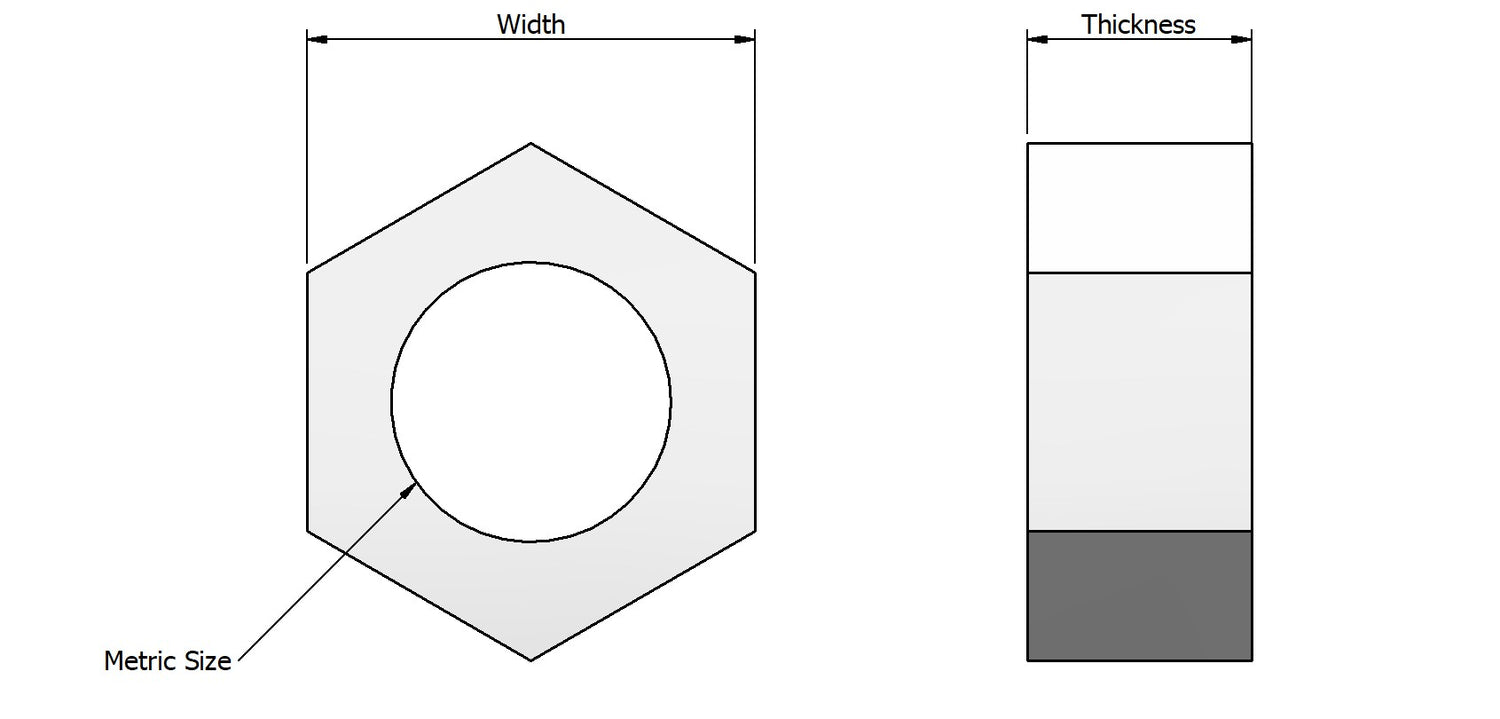

Product Drawing

Hexagon Nut Dimension Table (ISO 4032/DIN 934)
M Size Pitch (mm) Width (Flat-Flat) (mm) Thickness (mm)
M2 0.4 4.0 1.6
M2.6 0.45 5.0 2.0
M2.5 0.45 5.0 2.0
M3 0.5 5.5 2.4
M4 0.7 7.0 3.2
M5 0.8 8.0 4.0
M6 1.0 10.0 5.0
M8 1.25 13.0 6.5
M10 1.50 17.0 8.0
M12 1.75 19.0 10.0

Dimension Table

Dimensions for PTFE Teflon Hexagon Nuts in all available sizes are shown according to the product drawing above.

Polytetrafluoroethylene (PTFE/Teflon) Datasheet

Follow the link below to view our PTFE data sheet. This includes properties such as mechanical, electrical, thermal and chemical resistance.

Download PDF

PTFE Key Properties

  • Exceptional Chemical Resistance - Perfect for applications in the pharma sector.

    Low Adhesive Properties - Ideal for application that require self lubrication.

    High UV Resistance - Low rates of deterioration in external applications.

    Low Water Absorption Rates - A great alternative to nylon.

  • - Max operation temperature 260°C

    - Ultra low weight

    - Flame resistance (V-0)

    - Abrasion resistance

    - Hydrolysis resistance

    - Great electrical insulating properties

  • - Non-Magnetic

    - Low thermal conductivity

    - Non-Corrosive

    - Material flexibility

    - Low coefficent of friction

    - High thermal stability
